Walkie electric pallet truck with small turning radius Loading capacity: 1.5 ton, 2 ton Capacity: 500,000 units/year
what are you looking for?
Lightweight walkie electric pallet truck, powerby by maintenance-free lithium battery, long working time around 6hours
Loading capacity: 1.2 ton, 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CBD12W-Li, CBD15W-LiPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
20 days

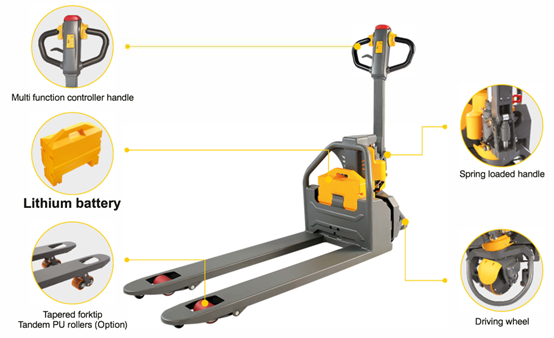

1. Advantages:
•48V large capacity maintenance-free lithium battery, long working time around 6hours.
•The charging time only needs 3 hours.
•10 seconds replacement of the battery(two groups exchanged battery can be used for 24 hours of continuous work).
•Brushless motor, maintenance-free, high efficiency.
•Stepless speed, smooth speed changing.
•Small and beautiful, flexible steering, which can successfully enter the narrow space, such as elevators, small super market.
•Multi-function Control Handle
incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.
•Ergonomic Spring-loaded
steering handle with comfort grip for reduced operator fatigue.
•Long Tiller with Large Hand Grip
for easy and comfortable hold, strain-free operation.
•Plug-in Battery Design
makes it easier to remove and change, no need additional tools or devices.
•Integrated Rocker Arm
The rocker arm is casted in single piece, intensifying the strength and structure.
•Compact Vehicle Design
Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
•Less Wiring, Easy Service
Mechanical and electronic components are easy to change and service.
•Brushless Motor
Stepless speed control provides better and smoother speed changing. Brushless motor is easy for maintenance.
2. Range of Application
•Indoor use, light duty work
•Warehouses freight handling
•Retail outlets
•Frozen food storage
•Chemical handing and processing facilities
3. Specification
Model
CBD12W-Li
CBD15W-Li
Load capacity
Q(kg)
1200
1500
Load centre distance
c(mm)
600
600
Fork height, lowered
h13(mm)
80
80
Tyre size, front
mm
Φ250
Φ250
Tyre size, rear(single)
mm
Φ80
Φ80
Wheels, number front rear(x = driven wheels)
1x-2/4
1x-2/4
Max. lift height
h3(mm)
110
110
Height of tiller in drive position min./ max.
h14(mm)
635/1200
635/1200
Overall length
l1(mm)
1651/1721
1651/1721
Length to face of forks
l2(mm)
502
502
Overall width
b1(mm)
550/680
550/685
Fork dimensions
s/e/l(mm)
45/160/1150(1220)
45/160/1150(1220)
Width overall forks
b5(mm)
550/680
550/685
Aisle width for pallets 1000×1200 crossways
Ast(mm)
1850/1920
1850/1920
Aisle width for pallets 800×1200 lengthways
Ast(mm)
1900/1920
1900/1920
Turning radius
Wa(mm)
1452/1522
1452/1522
Travel speed, laden/ unladen
km/h
4/4.5
4/4.5
Max. gradeability, laden/unladen
%
5/20
4/20
Battery voltage,nominal capacity K5
V/Ah
48/20
48/20
Battery dimensions l/w/h
mm
340x130x307
340x130x307
Battery weight
kg
10
10
Service weight (with battery)
kg
140
145
