The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation. Loading capacity: 1 ton, 1.2 ton Capacity: 500,000 units/year
Straddle-Type Rider electric stacker provides a cost effective solution for applications involving medium lifting storage and long distance transportation of pallets with bottom brace.
Loading capacity: 1 ton, 1.2 ton, 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CTDR10, CTDR12, CTDR15Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
20 days1. Advantages:
SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates replacement of carbon brush.
• Multi-function display with BDI and hour meter.
•Side way battery is easy to maintain.
•Damping cushion for low-noise operation.
•Emergency reversing device in the handle provides higher safety for the whole operation.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.Braking applied with handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle low speed switch.
• Stepless speed control.
OPTIMUM STRUCTURAL DESIGN:
• Low center of gravity ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius. The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.

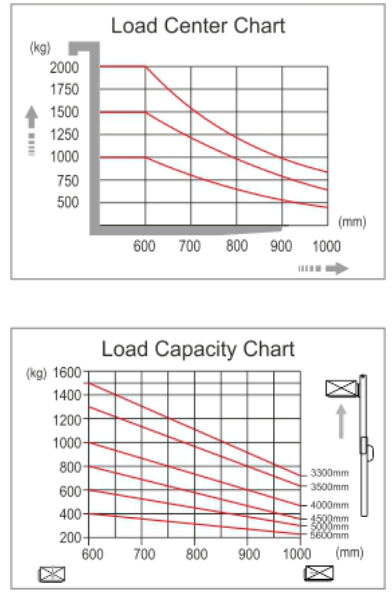

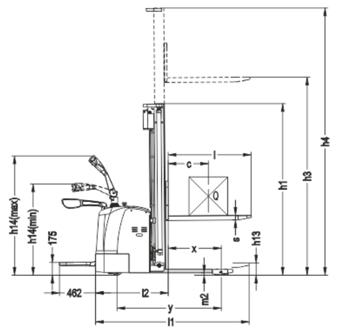

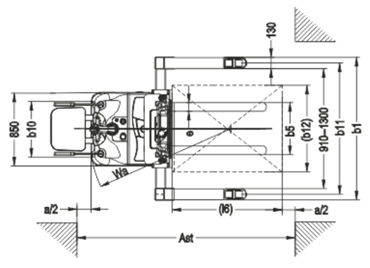

2. Specification
Model | CTDR10 | CTDR12 | CTDR15 | |
Load capacity/rated load | Q(kg) | 1000 | 1200 | 1500 |
Max. Lift height | h3(mm) | 1600/2500/3000/3300 | 1600/2500/3000/3300 | 2500/3000/3300/3500/4500/5000/5600 |
Load centre distance | c(mm) | 600 | 600 | 600 |
Load distance,centre of drive axle to fork | x(mm) | 795 | 795 | 677 |
Fork height, lowered | h13(mm) | 70 | 795 | 70 |
Tyre size, front | mm | φ250×70 | φ250×70 | φ250×70 |
Tyre size, rear | mm | φ98×82 | φ98×82 | φ80×84 |
Additional wheels(dimensions) | mm | φ150×60 | φ150×60 | φ150×60 |
Wheels,number front rear(x=driven wheels) | 1×1/4 | 1×1/4 | 1x+2/4 | |
Height,mast lowered | h1(mm) | 2145/1895/2145/2295 | 2145/1895/2145/2295 | 1805/2055/2205/2305/2120/2280/2480 |
Free lift(option 2500~3500mm) | h2(mm) | ~ | ~ | 1300/1550/1700/1800/1570/1740/1940 |
Height,mast extended | h4(mm) | 2145/3145/3645/3995 | 2145/3145/3645/3995 | 3025/3525/3825/4025/5080/5560/6160 |
Height of tiller in drive position min./max. | h14(mm) | 1150/1450 | 1150/1450 | 1150/1450 |
Overall length | l1(mm) | 1975 | 1975 | 2020/2100 |
Length to face of forks | l2(mm) | 890 | 890 | 962 |
Overall width | b1(mm) | 1182-1582 | 1182-1582 | 1170-1560 |
Fork dimensions | s/e/l(mm) | 35/100/1070(1150) | 35/100/1070(1150) | 35/100/1070(1150) |
Width overall forks | b5(mm) | 200-800 | 200-800 | 200-800 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2490 | 2490 | 2545 |
Turning radius | Wa(mm) | 1625 | 1625 | 1695 |
Travel speed,laden/unladen | Km/h | 6.5/6.7 | 6.5/6.7 | 6.5/6.7 |
Lift speed,laden/unladen | m/s | 0.06/0.13 | 0.06/0.13 | 0.11/0.14 |
Lowering speed,laden/unladen | m/s | 0.13/0.10 | 0.13/0.10 | 0.12/0.12 |
Battery voltage,nominal capacity K5 | V/Ah | 24/120 | 24/120 | 24/240 |
Battery weight | kg | 90 | 90 | 220 |
Battery dimensions l/w/h | mm | 753x178x240 | 753x178x240 | 675x254x500 |
Service weight (with battery) | kg | 650/700/730/750 | 660/710/740/760 | 1200/1225/1240/1250/1300/1320/1340 |
