Handle Pallet Truck with scale combined two major functions for pallet truck/scale, allows you to weigh cargo Loading capacity: 2 ton Capacity: 1000,000 units/year
Brand:
JACItem NO.:
BFPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Min order:
6Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
15 days
1. Features:
•Most standard and popular model with capacity 2500 – 3500kgs.
•With Copping Supporting NOG & strengthening ribbing under top triangle cover.
•Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
•210 steering arc, and small turning radius.
•Fork Lowering speed is controllable, operated by hand control and foot pedal.
•Entry/exit roller, more freely travel.
•Equipped with over-load valve, with long service time.
•3 position hand control – Raise, Lower, Neutral.
•12 lubrication grease nipples on all movable parts for easy maintenance.
•Adjustable pump cap ensures a long service life.
•Ergonomic large rubber handle with three control lever.
2. Options:
•Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
•Fork length: 800mm, 900mm, 1000mm.
•Foot pedal release.
•Pump color: black painting, silver painting, silver galvanized.
3. Specification:
Model | BF | ||
Capacity | Q(kg) | 2500/3000 | 2500/3000 |
Lowered fork height | h13(mm) | 85 | 75 |
Steeling wheel | mm | Φ200 | Φ180 |
Fork wheel single | mm | Φ80×93 | Φ74×93 |
Fork wheel tandem | mm | Φ80×70 | Φ74×70 |
Max.lift height | h3(mm) | 200 | 190 |
Total height | h14(mm) | 1224 | 1214 |
Overall length | I1(mm) | 1483/1533/1603 | 1483/1533/1603 |
Fork length | I(mm) | 1100/1150/1220 | 1100/1150/1220 |
Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
Ground clearance,centre of wheelbase | m2(mm) | 40 | 30 |

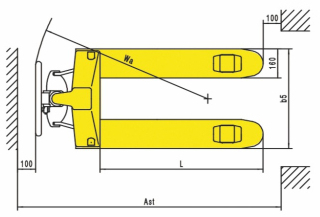

Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1683/1733/1803 | 1683/1733/1803 |
Aisle width for pallets 800*1200 lengthways | Ast(mm) | 1783/1783/1803 | 1783/1783/1803 |
Turning radius | Wa(mm) | 1216/1266/1336 | 1216/1266/1336 |
Service weight | kg | 60-75 | 60-75 |
