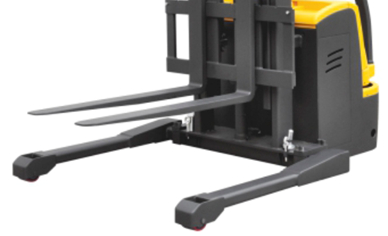

The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation. Loading capacity: 1 ton, 1.2 ton Capacity: 500,000 units/year
Walkie type electric stacker with straddle legs provides a cost effective solution for applications involving medium lifting storage and short distance double-deck pallets transportation.
Loading capacity: 1 ton, 1.2 ton, 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CTDW10, CTDW12, CTDW15Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
20 daysWalkie type electric stacker with straddle legs provides a cost effective solution for applications involving medium lifting storage and short distance double-deck pallets transportation.
1. Advantages:
STRUCTURAL AND SAFETY:
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and hour meter.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Small turning radius standing drive motor system, water-proof and dust-proof motor structure.
SERVICEABILITY:
• CANbus technology reduces wiring complexity .
• Side-way battery with roll-out system , convenient for replacement.

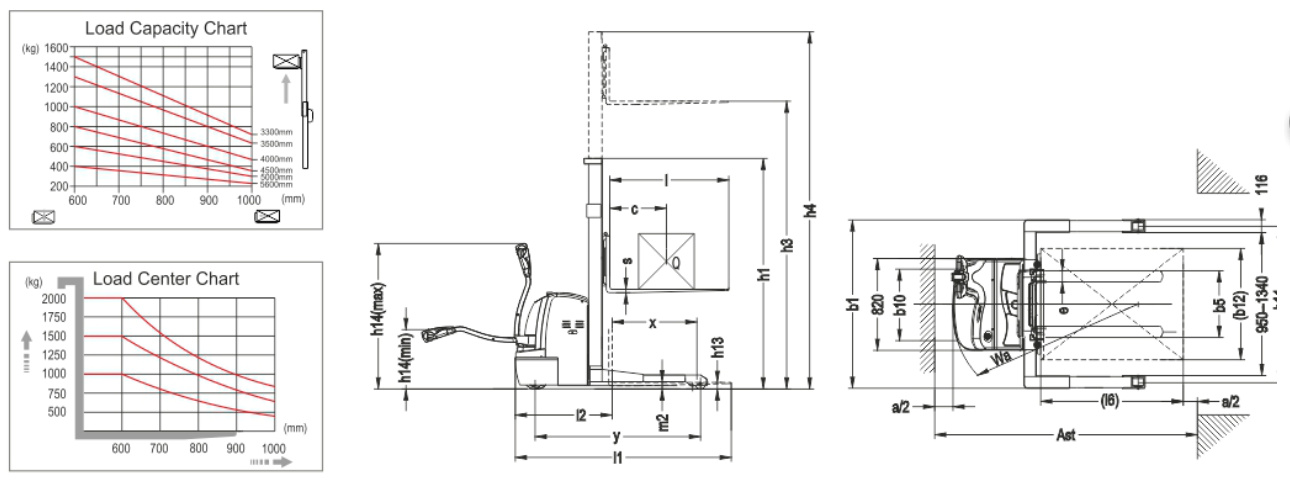

2. Specification
Model
CTDW10
CTDW12
CTDW15
Load capacity/rated load
Q(kg)
1000
1200
1500
Max. Lift height
h3(mm)
1600/2500/3000/3300
1600/2500/3000/3300
2500/3000/3300/3500/4500/5000/5600
Load centre distance
c(mm)
600
600
600
Load distance,centre of drive axle to fork
x(mm)
795
795
677
Fork height, lowered
h13(mm)
70
795
70
Tyre size, front
mm
φ250×70
φ250×70
φ250×70
Tyre size, rear
mm
φ98×82
φ98×82
φ80×84
Additional wheels(dimensions)
mm
φ150×60
φ150×60
φ150×60
Wheels,number front rear(x=driven wheels)
1×1/4
1×1/4
1×1/4
Height,mast lowered
h1(mm)
2145/1895/2145/2295
2145/1895/2145/2295
1805/2055/2205/2305/2120/2280/2480
Free lift(option 2500~3500mm)
h2(mm)
~
~
1300/1550/1700/1800/1570/1740/1940
Height,mast extended
h4(mm)
2145/3145/3645/3995
2145/3145/3645/3995
3025/3525/3825/4025/5080/5560/6160
Height of tiller in drive position min./max.
h14(mm)
1150/1450
1150/1450
670/1300
Overall length
l1(mm)
1975
1975
1980
Length to face of forks
l2(mm)
890
890
915
Overall width
b1(mm)
1182-1582
1182-1582
1170-1560
Fork dimensions
s/e/l(mm)
35/100/1070(1150)
35/100/1070(1150)
35/100/1070(1150)
Width overall forks
b5(mm)
200-800
200-800
200-800
Aisle width for pallets 800×1200 lengthways
Ast(mm)
2490
2490
2465
Turning radius
Wa(mm)
1625
1625
1610
Travel speed,laden/unladen
Km/h
6.5/6.7
6.5/6.7
5.8/6
Lift speed,laden/unladen
m/s
0.06/0.13
0.06/0.13
0.11/0.14
Lowering speed,laden/unladen
m/s
0.13/0.10
0.13/0.10
0.12/0.12
Battery voltage,nominal capacity K5
V/Ah
24/120
24/120
24/240
Battery weight
kg
90
90
220
Battery dimensions l/w/h
mm
753x178x240
753x178x240
675x254x500
Service weight (with battery)
kg
650/700/730/750
660/710/740/760
1040/1160/1170/1200/1375/1410/1450
