Electric reach stacker with compact structure and low gravity
Loading capacity: 1.2 ton, 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CQD12R， CQD15RPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 days1. STRUCTURAL:
•Two lifting cylinders placed on outer sides of the mast.
•Germany imported special steel mast.
•Vertical driving wheel, driving efficiency , easy installation & maintenance.
•Compact structure and low gravity .
2. SAFETY AND EFFICIENCY:
•AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
•Tilting system forks easy for loading and stacking.
•High Storage battery ensures strong and long-lasting power.
•Meter with BDI , prolonging the battery’s using time.
•The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate.
•With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
•The adjustable regulator valve can adjust the lowing speed of the masts.
3. EASY MAINTENANCE:
•Magnet suction for battery cover, easy for installation and maintenance.
•AC controlling system, low noise, less maintenance.

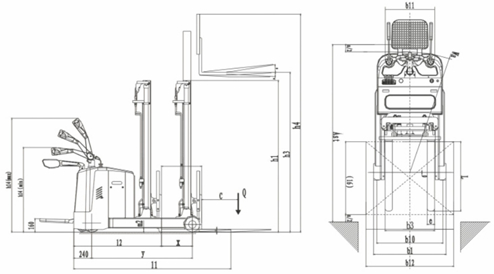

4. SPECIFICATION
Model
CQD12R
CQD15R
Load capacity
Q(kg)
1250
1500

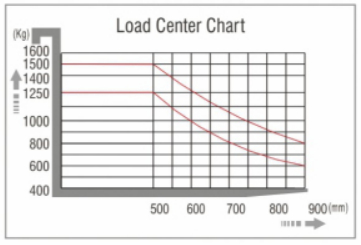

Load center
c(mm)
500
500
Load distance
x(mm)
430
520
Tyre size, front
mm
Φ250×70
Φ250×70
Tyre size, rear
mm
Φ210×85
Φ210×85
Balance wheel size
mm
Φ150×60
Φ150×60
Wheels, number front rear ( x=driven wheels)
1x+ 2/2
1x+2/2
Mast/ Forks obliquity front/back
°
3/6
3/6
Height, mast closed
h1(mm)
1820/2070/2320/1920/2080/2250/2420
1880/2118/2400/1953/2128/2298/2495
Free lift (option)
h2(mm)
0/0/0/1386/1550/1720/1886
0/0/0/1280/1480/1600/1870

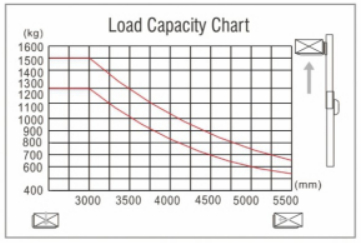

Max. lifting height
h3(mm)
2500/3000/3500/4000/4500/5000/5500
2500/3000/3500/4000/4500/5000/5600
Height, mast extended
h4(mm)
3300/3800/4300/4800/5300/5800/6300
3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./ max.
h14(mm)
1160/1460
1160/1460
Overall length
l1(mm)
2150
2250
Length to face of fork
l2(mm)
1200
1240
Overall width
b1(mm)
990
990
Fork dimension
s/e/l(mm)
35/100/950(1070/1150)
35/100/950(1070/1150)
Fork carriage width
b3(mm)
220-680
220-680
Reach distance
l3(mm)
560
650
Aisle width for pallets 800×1200 length ways
Ast(mm)
2650
2750
Turning radius
Wa(mm)
1650
1750
Travel speed, laden/ unladen
kw/h
6.8/7
6.8/7
Lifting speed, laden/ unladen
m/s
0-0.13/0-0.16
0-0.13/0-0.16
Lowering speed, laden/ unladen
m/s
0-0.45
0-0.45
Battery volts./ Cap.
v/ah
24/270
24/270
Battery weight
kg
260-320
260-320
Battery dimensions (l*w*h)
mm
825x213x590
825x213x590
Service weight (with battery)
kg
1800
2140
