Electric Rider Stacker 1 ton to 1.5 ton

Rider type electric stacker provides a cost effective solution for applications involving medium lifting storage and long distance pallets transportation
Loading capacity: 1 ton, 1.2 ton, 1.5 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CDDR10, CDDR12, CDDR15
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    20 days
  • Product Details

1. Advantages:

SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates carbon brush replacement.
• Multi-function display with BDI and hour meter.
• Side way battery is easy to maintain.
• Damping cushion for low-noise operation.
• Emergency reversing device equipped handle to keep safe.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
• With brake in handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Stepless speed control.

 OPTIMUM STRUCTURAL DESIGN
• Low barycenter ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius.
The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.
• Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door).
Serviceability:
• Low voltage protection setting prolongs the battery use time.
• The electronic components’ concentrated design simplifies the circuit and makes easy access to assemble, debug and maintain.
• CANbus technology reduces wiring complexity and increase reliability.
• Hall element reduces wear components, resulting in increased component life.

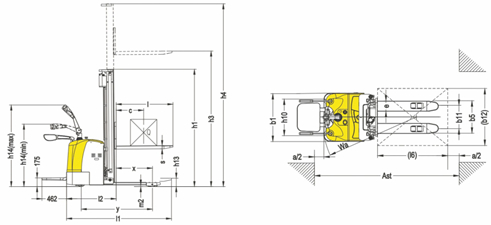

2. Specification

Model CDDR10- CDDR12- CDDR15-
Load capacity/rated load Q(kg) 1000 1200 1500
Load centre distance c(mm) 500 500 600
Load distance,centre of drive axle to fork x(mm) 600 600 697
Fork height, lowered h13(mm) 90 90 90
Tyre size, front mm φ250×70 φ250×70 φ250×70
Tyre size, rear mm φ80×70 φ80×70 φ80×70
Additional wheels(dimensions) mm φ150×60 φ150×60 φ150×60
Wheels,number front rear(x=driven wheels) 1x+2/4 1x+2/4 1x+2/4
Height,mast lowered h1(mm) 2087/1837/2087/2237 2087/1837/2087/2237 2087/1837/2087/2237
Free lift(option 2500~3500mm) h2(mm) ~
Max. Lift height h3(mm) 1600/2500/3000/3300 1600/2500/3000/3300 1600/2500/3000/3300
Height,mast extended h4(mm) 2087/3087/3587/3887 2087/3087/3587/3887 2087/3087/3587/3887
Height of tiller in drive position min./max. h14(mm) 1150/1450 1150/1450 1150/1450
Overall length l1(mm) 1955 1955 2025
Length to face of forks l2(mm) 840 840 920
Overall width b1(mm) 850 850 850
Fork dimensions s/e/l(mm) 60/170/1070(1150) 60/170/1070(1150) 60/170/1070(1150)
Width overall forks b5(mm) 570/695 570/695 570/695
Aisle width for pallets 800×1200 lengthways Ast(mm) 2440 2440 2520
Turning radius Wa(mm) 1575 1575 1655
Travel speed,laden/unladen Km/h 6.5/6.7 6.5/6.7 6.5/6.7
Lift speed,laden/unladen m/s 0.06/0.13 0.06/0.13 0.06/0.13
Lowering speed,laden/unladen m/s 0.13/0.10 0.13/0.10 0.13/0.10
Battery voltage,nominal capacity K5 V/Ah 24/120 24/120 24/200
Battery weight kg 90 90 160
Battery dimensions    l/w/h mm 753x178x240 753x178x240 800x254x320
Service weight (with battery) kg 700/750/780/800 800/850/870/890 840/920/930/945
