Brand:
JACItem NO.:
CPCD50H, CPCD60H, CPCD70HPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD50H
CPCD60H
CPCD70H
Features
Power type
Diesel
Rated load（kg）
5000
6000
7000
Load center distance（mm）
600
Lift height（mm）
3000
Free lift height（mm）
160
160
170
Fork size
L×W×T（mm）
1220×150×60
1220×150×60
1220×150×70
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
3300
3300
3370
Minimum right angle stacking aisle width（mm）
5220
5220
5300
Minimum right angle aisle width（mm）
2960
2960
3100
Minimum ground clearance
Frame center(no load)（mm）
220
Mast Bottom（no load）（mm）
205
Height of overhead guard（mm）
2500
Overhang (FR)（mm）
620
620
630
Performance
Maximum travel speed
Full load（km/h）
24
No load（km/h）
25
25
25
Maximum lift speed
Full load（mm/s）
460
No load（mm/s）
500
500
495
Maximum drawbar pull
Full load（KN）
53
Maximum gradeability（%）
30
28
22
Dimensions
Overall length
Without forks（mm）
3470
3470
3590
Overall width（mm）
1995
Mast height at maximum lift (with backrest)（mm）
4415
Mast lowered height（mm）
2510
Chassis
Tires
Front wheel
8.25-15-14PR
Rear wheel
8.25-15-14PR
Wheelbase（mm）
2250
Tread
Front wheel/rear wheel（mm）
1470/1700
Self weight
Without load（Kg）
8160
8640
9460
Drive
Battery
Voltage/capacity（V/Ah）
24/160

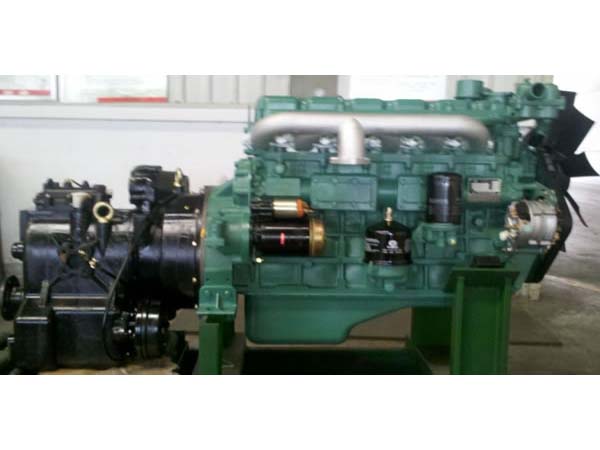

Engine
Model
CA4DF3
Rated output（kw/r.p.m）
85/2200
Rated torque（Nm/r.p.m）
460/1400-1500
Bore x stroke（mm）
110×125
Number of cylinders
4
Displacement（L）
4.75
Fuel tank capacity（L）
110
Transmissions (FWD/RWD)
2/2
manual shift
Operating pressure（Mpa）
19.5
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
4/2
Lowering speed (full load)（mm/s）
460
510
510
Lowering speed (no load)（mm/s）
370
350
350
Axle load distribution (full load) (FR/RR)（kg）
11840/1320
13180/1460
14800/1640
Axle load distribution (no load) (FR/RR)（kg）
3260/4890
3450/5180
3780/5670
Features
1. The hydraulic drive system of H series diesel forklift provides stable and efficient driving effect.

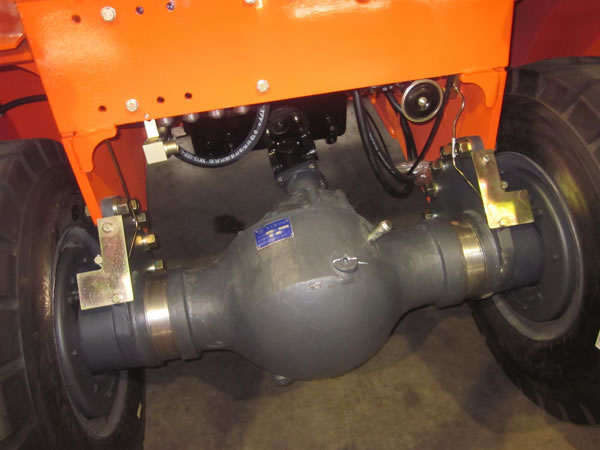

2. The hyperbolic design for the main reducer of drive axle helps realize smooth meshing. Apart from the low noise, this design extends the lifespan of the drive axle, as well.

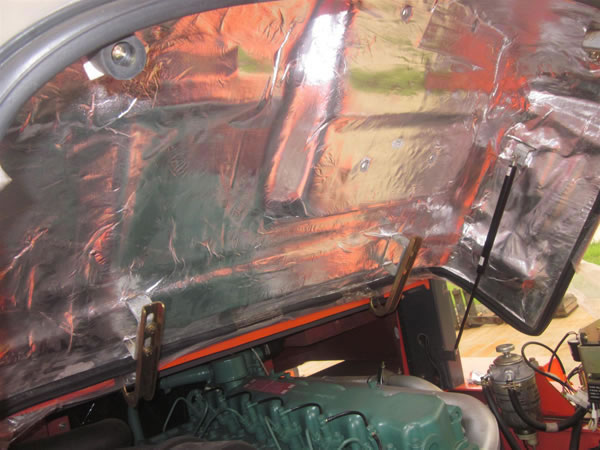

3. Eco-friendly, the hood of the 5-7T forklift truck is installed with built-in heat-insulated and sound absorbing material. The gap is filled with rubber to absorb vibration and reduce noise during operation.

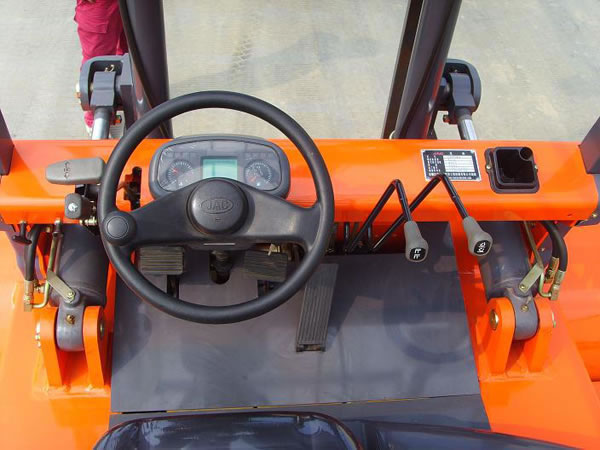

4. Our diesel forklift is meticulously designed according to ergonomics, which effectively enlarges the working space and minimizes the fatigue of the operator.

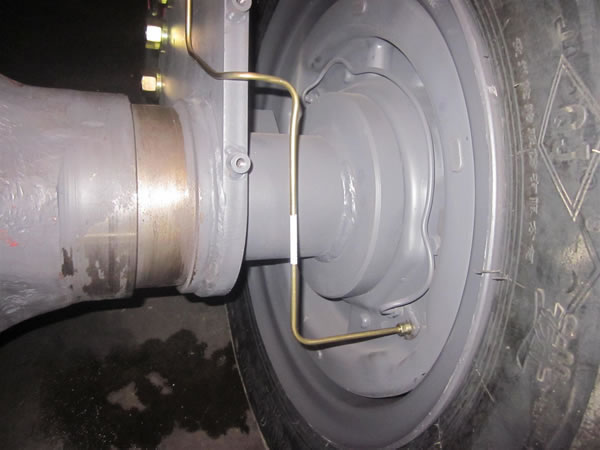

5. Thanks to the drum brake, the sensitive braking effect of the heavy-duty forklift truck makes this product particularly safe and reliable for use.

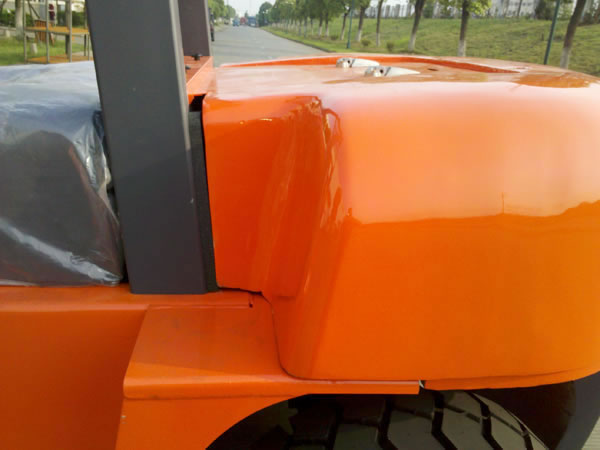

6. The natural and simple design of the balance weight eliminates the influence on the appearance caused by deformation of the side hood.

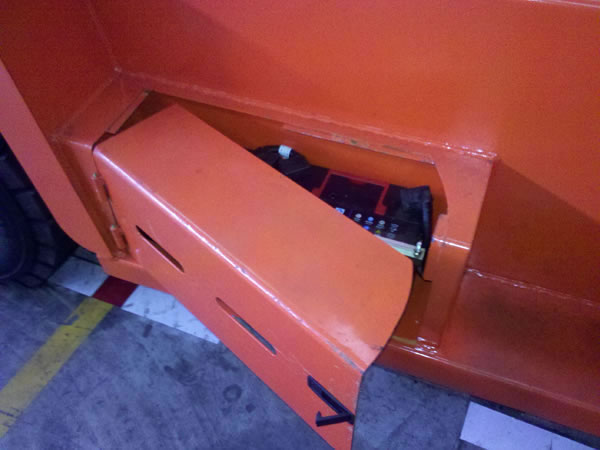

7. The storage battery box can be opened from its side for outstanding waterproofness and maintainability.
8. Diaphragm type clutch pressure plate and the patented shift fork enable convenient operation of the clutch.
