Brand:
JACItem NO.:
CPCD80H, CPCD90H, CPCD100HPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysTechnical Parameters of Diesel Forklift

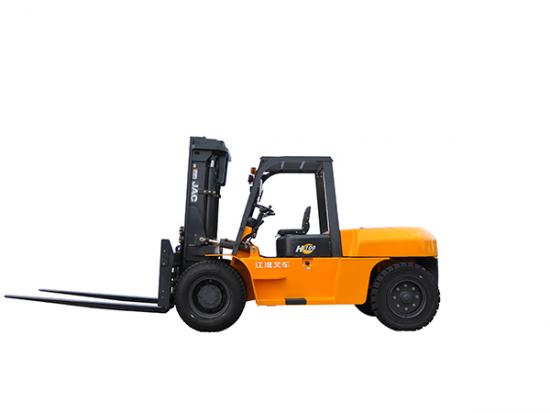

CPCD90H Diesel Forklift
Model
CPCD90H
Rated Load Capacity
9000kg
Engine
Engine from ISUZU, PERKINS, and other Chinese supplier
Gearbox
Hydraulic/automatic (TCM technology)
Standard Mast
2-stage mast (3m)
Container Mast (Optional)
2-stage or 3-stage full free mast (3m-6m)
Tyre
Pneumatic tyre (Standard), solid tyre (Optional)
Side Shifter (Optional)
Integrated type side shifter, CASCADE side shifter

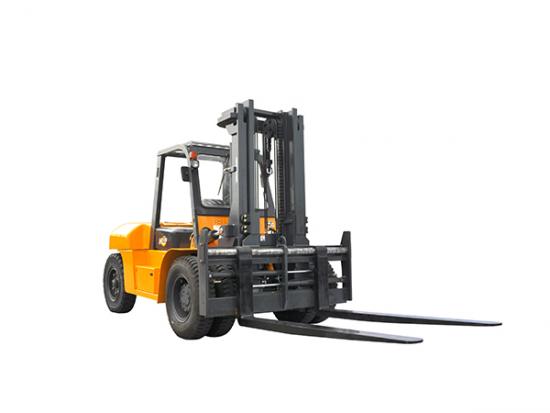

CPCD80H/ CPCD100H Diesel Forklift
Model
CPCD80H
CPCD100H
Features
Power type
Diesel
Rated load（kg）
8000
10000
Load center distance（mm）
600
Lift height（mm）
3000
Free lift height（mm）
185
175
Fork size
L×W×T（mm）
1220×150×80
1370×175×85
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
3370
3950
Minimum right angle stacking aisle width（mm）
5310
5977
Minimum right angle aisle width（mm）
3100
3540
Minimum ground clearance
Frame center(no load)（mm）
220
280
Mast Bottom（no load）（mm）
205
245
Height of overhead guard（mm）
2500
2560
Overhang (FR)（mm）
640
727
Performance
Maximum travel speed
Full load（km/h）
24
22
No load（km/h）
25
Maximum lift speed
Full load（mm/s）
400
200
No load（mm/s）
430
410
Maximum drawbar pull
Full load （KN）
53
60
Maximum gradeability（%）
20
Dimensions
Overall length
Without forks（mm）
3610
4258
Overall width（mm）
1995
2268
Mast height at maximum lift (with backrest)（mm）
4335
4325
Mast lowered height（mm）
2510
2845
Chassis
Tires
Front wheel
8.25-15-18PR
9.00-20-14PR
Rear wheel
8.25-15-18PR
9.00-20-14PR
Wheelbase（mm）
2250
2800
Tread
Front wheel/rear wheel（mm）
1470/1700
1600/1700
Self weight
Without load（Kg）
10460
12930
Drive
Battery
Voltage/capacity（V/Ah）
24/160
Engine
Model
CA4DF3
Rated output（kw/r.p.m）
85/2200
Rated torque（Nm/r.p.m）
460/1400-1500
Bore x stroke（mm）
110×125
Number of cylinders
4
Displacement（L）
4.75
Fuel tank capacity（L）
110
120
Transmissions (FWD/RWD)
2/2
manual shift
Operating pressure（Mpa）
19.5
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
4/2
Lowering speed (full load)（mm/s）
500
400
Lowering speed (no load)（mm/s）
350
330
Axle load distribution (full load) (FR/RR)（kg）
16620/1850
20670/2290
Axle load distribution (no load) (FR/RR)（kg）
4180/6270
5190/7780
Features

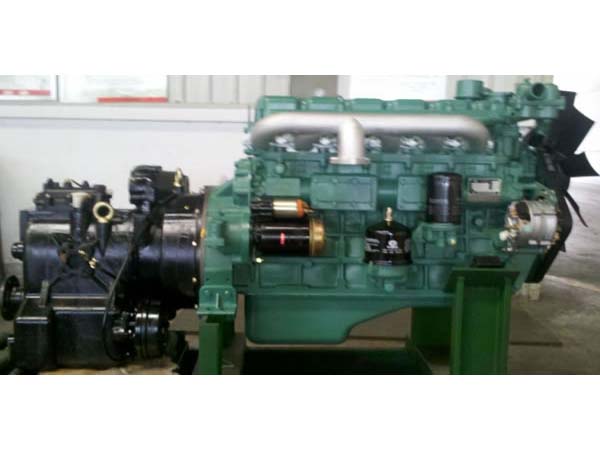

1. The hydraulic drive system of H series diesel forklift provides stable and efficient driving effect.

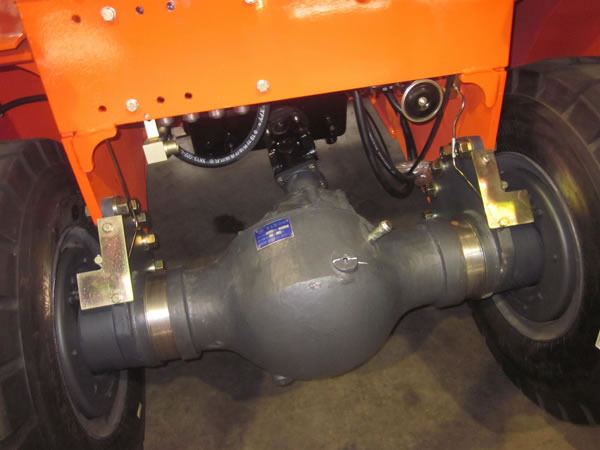

2. The hyperbolic design for the main reducer of drive axle helps realize smooth meshing. Apart from the low noise, this design extends the lifespan of the drive axle, as well.

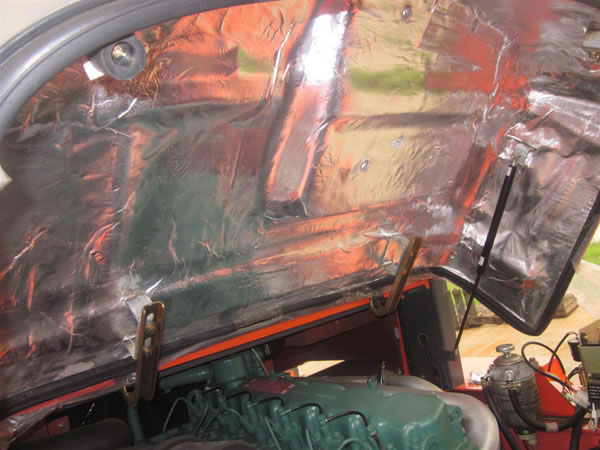

3. To improve the working environment, we specially manufacture the hood of the diesel powered forklift with heat-insulated and sound absorbing material. Apart from that, the gap is filled with rubber for vibration absorption.

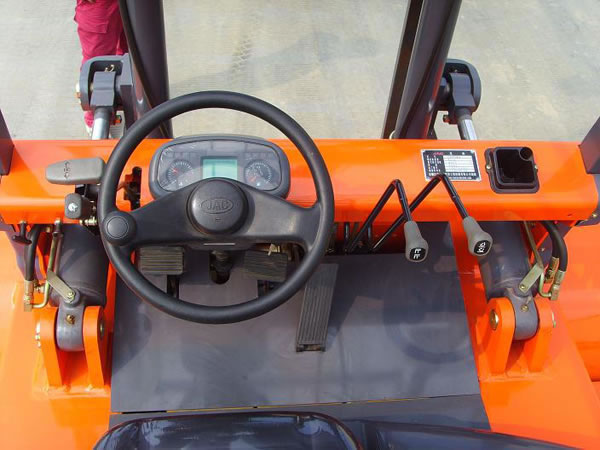

4. Our diesel forklift is meticulously designed according to ergonomics, which effectively enlarges the working space and minimizes the fatigue of the operator.

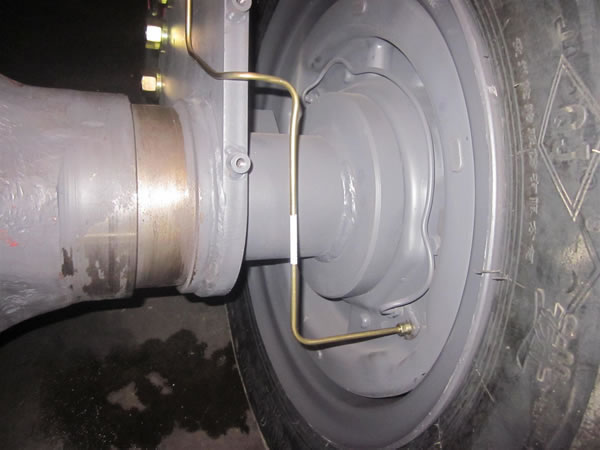

5. Thanks to the drum brake, the sensitive braking effect of the heavy-duty forklift truck makes this product particularly safe and reliable for use.
6. The fuel tank cap is located at the side of the tank. The self-locking structure of the cap completely avoids fuel leakage.
7. The simple and attractive structure of the overhead guard makes the dismantling of the product much easier. In the meantime, the impact resistance of the lift truck is greatly improved.

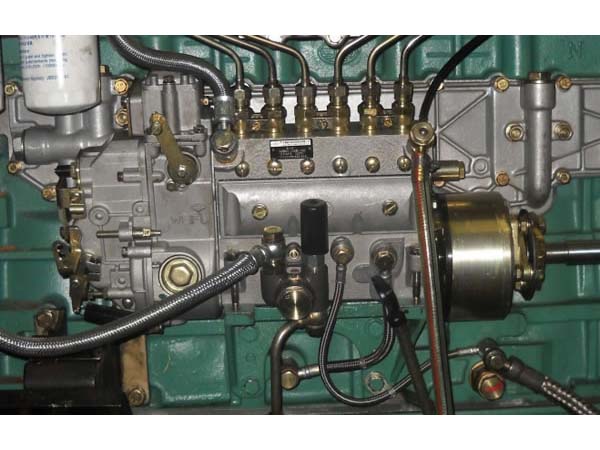

8. The oil pump speed controller is upgraded to reduce blue smoke generated during engine idling and cold start.
