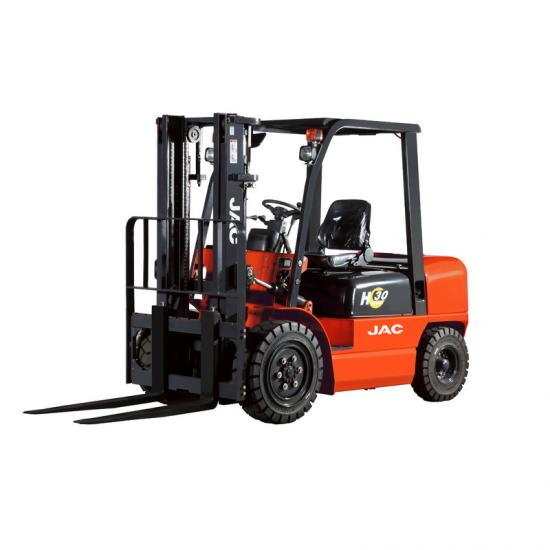

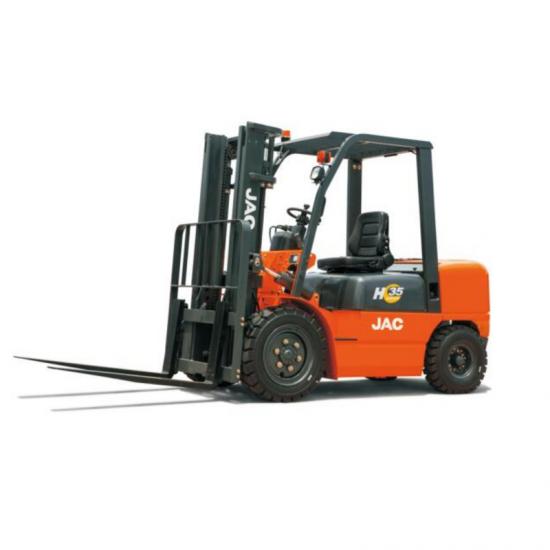

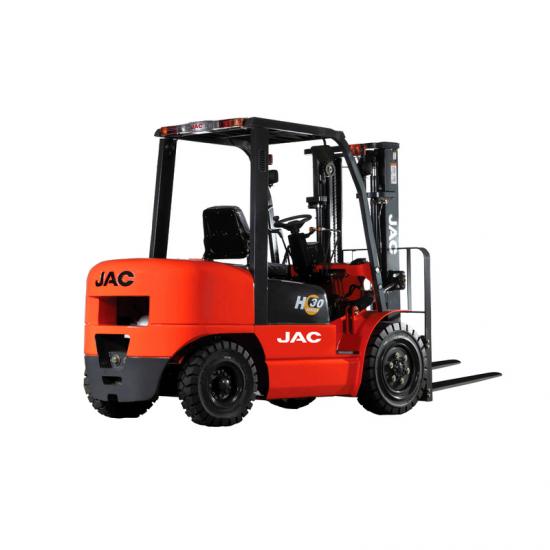

Diesel Forklift Truck 2 ton to 3.5 ton

Counterbalanced forklift with diesel Engine, Chinese engine and Isuzu engine for option
Loading capacity: 2 ton, 2.5 ton, 3 ton, 3.5 ton
Capacity: 20,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CPCD20, CPCD25, CPCD30, CPCD35
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    25 days
  • Product Details

1. Advantage

Japanses ISUZU engine for optional;

Wide field of view;

Big opening angle of the hood makes the maintenance of the fork truck easier;

Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of the product.


2. Features

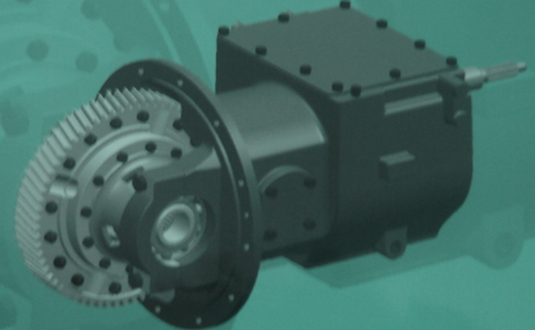

Equipped with a mechanical synchronizer, soft and smooth gear switching, avoid collision between gears to reduce noise, increase gears working life.

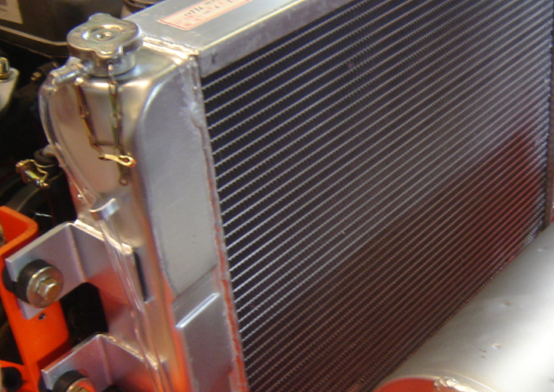

With aluminum radiator which has been widely used on forklift, makes better cooling effect.



High air intake system, effectively prevent dust being absorbed, therefore extend working life of the engine.

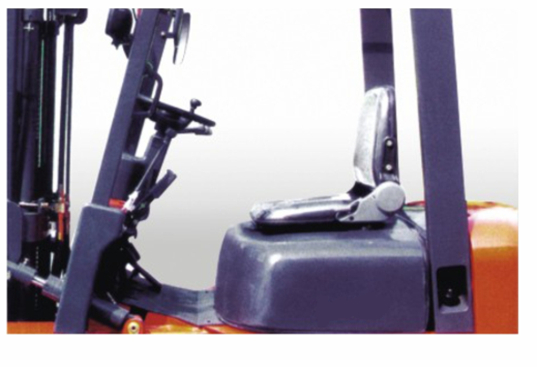

Position of the seat and the angle of the steering wheel are adjustable, improve operating room, makes comfort to drive.

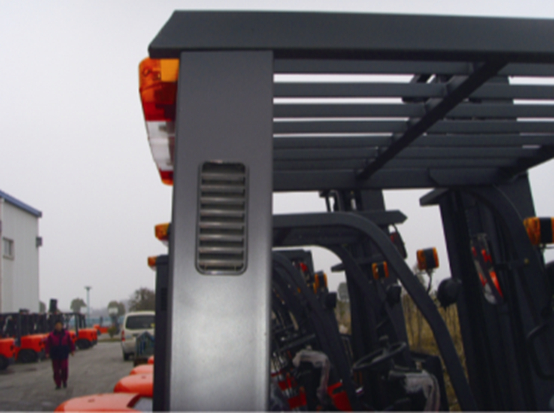

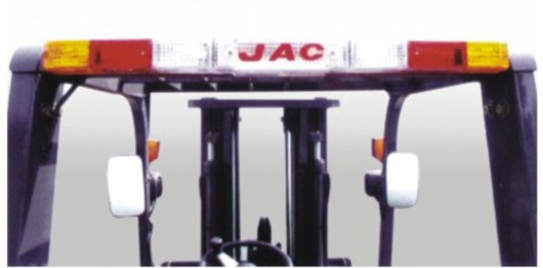

Fashionable appearance, combined tail lamps at the back of overhead guard, noticeable and obvious, provide safer working condition and more suitable for night operations, exterior design obtained national patent.


3. Specification

Model CPCD20 CPCD25 CPCD30 CPCD35
1 Feature Power Type Diesel Diesel
2 Load Capcity kg 2000 2500 3000 3500
3 Load center mm 500 500
4 Lift height mm 3000 3000
5 Free lift height mm 240 165
6 Forkk size L*W*H mm 1070×122×40 1070×125×45 1070×125×50
7 Mast tilt FR/RR 6/12 6/12
8 Min turning Radius mm 2170 2230 2459 2573
9 Min Right angle stacking aisle width mm 3655 3230 3933 3573
10 Min right angle aisle width mm 2370 2430 2659 2773
11 Min ground clearance mm 110 110 130
12 Height of overhead guard mm 2070 2090
13 Overhang mm 485 474
14 Performance Max driving speed Full load km/h 19.5 19 18.5
15 Max Lifting speed Full load mm/s 500 490 420
16 Max drawbar pull Full load KN 11.7 11.4 20 28
17 Gradeabiity % 20 18 15
18 Dimension Overall length Without forks mm 2505 2580 2763 2799
19 Over width mm 1160 1230
20 Height mast lifted(with backrest) mm 3750 4256
21 Height mast lowered mm 1995 2065 2065
22 Chassis Tyre Front 7.00-12-12PR 28×9-15-14PR
23 Rear 6.00-9-10PR 6.50-10-10PR
24 Wheelbase mm 1600 1760
25 Tread FR/RR mm 970/970 1000/970
26 Self weight Without load Kg 3300 3660 4140 4460
27 Drive Battery Voltage / Capacity V/Ah 12/80 12/80
28 Engine Model XC490BPG XC C490BPG
29 Rated Power kw/r.p.m 37/2650 40/2650
30 Rated Torque Nm/r.p.m 148/2000 160/1800-2000
31 Bore * sTROKE mm 90×100 90×105
32 No.of Cylinder 4 4
33 Displacement L 2.54 2.67
34 Fuel tank capacity L 55
35 Transmission 1/1manual shift 1/1manual shift
36 Operating Pressure Mpa 18.5
37 Supplement Tire type (FR/RR) Pneumatic Pneumatic
38 Numbers of wheels pcs 2/2 2/2
39 lowering speed (full load) mm/s 550 480 493
40 Lowering speed ( unload) mm/s 540 460 463
41 Axle load distribution (full load) (FR/RR) kg 4740/660 5470/805 6272/868 7015/945
42 Axle load distribution (unload) (FR/RR) kg 1415/1340 1475/2305 1636/2504 1662/2798
