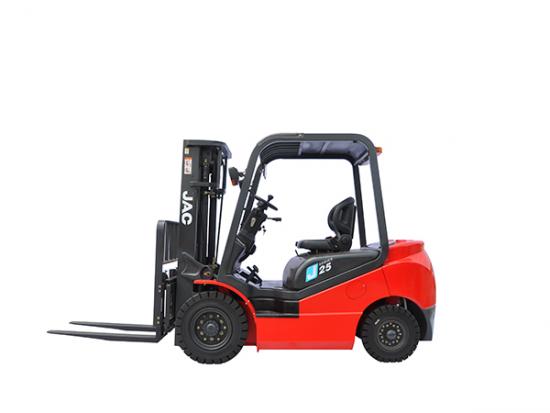

Counterbalanced forklift with Diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
what are you looking for?
Brand:
JACItem NO.:
CPCD20J， CPCD25JPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD20J
CPCD25J
Features
Power type
Diesel
Rated load（kg）
2000
2500
Load center distance（mm）
500
Lift height（mm）
3000
Free lift height（mm）
140
Fork size
L×W×T（mm）
1070×122×40
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
2245
2300
Minimum right angle stacking aisle width（mm）
4021
4076
Minimum right angle aisle width（mm）
2240
2295
Minimum ground clearance
Frame center(no load)（mm）
123
Mast Bottom（no load）（mm）
115
Height of overhead guard（mm）
2090
Overhang (FR)（mm）
476
Performance
Maximum travel speed
Full load（km/h）
19
No load（km/h）
19.5
Maximum lift speed
Full load（mm/s）
530
490
No load（mm/s）
585
530
Maximum drawbar pull
Full load（KN）
17
Maximum gradeability（%）
20
Dimensions
Overall length
Without forks（mm）
2535
2595
Overall width（mm）
1160
Mast height at maximum lift (with backrest)（mm）
4015
Mast lowered height（mm）
1995
Chassis
Tires
Front wheel
7.00-12-12PR
Rear wheel
6.00-9-10PR
Wheelbase（mm）
1600
Tread
Front wheel/rear wheel（mm）
970/970
Self weight
Without load（Kg）
3400
3800
Drive
Battery
Voltage/capacity（V/Ah）
12/80
Engine
Model
AK-C240PKJ-30
Rated output（kw/r.p.m）
34.3～36.5/2500
Rated torque（Nm/r.p.m）
137.7/1800
Bore x stroke（mm）
86×102
Number of cylinders
4
Displacement（L）
2.369
Fuel tank capacity（L）
60
Transmissions (FWD/RWD)
1/1 electro-hydraulic directional valve
Operating pressure（Mpa）
17
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
2/2
Lowering speed (full load)（mm/s）
450
Lowering speed (no load)（mm/s）
400
Axle load distribution (full load) (FR/RR)（kg）
4752/648
5544/756
Axle load distribution (no load) (FR/RR)（kg）
1530/1870
1710/2090
Features
1. The diesel forklift of J series is engineered in enclosed structure to reduce the noise and improve the comfort during operation.

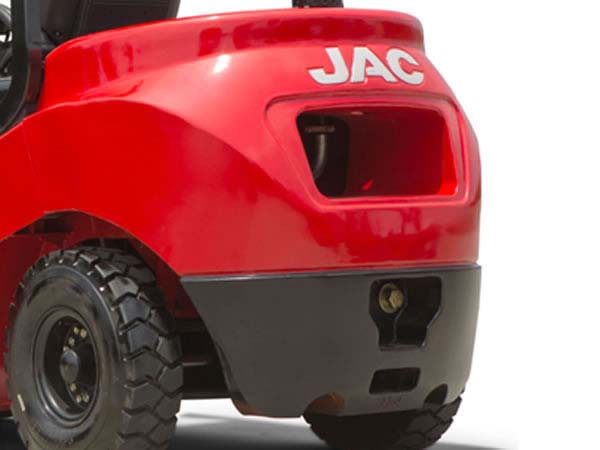

2. Newly-developed design for the balance weight makes the forklift truck quite attractive.

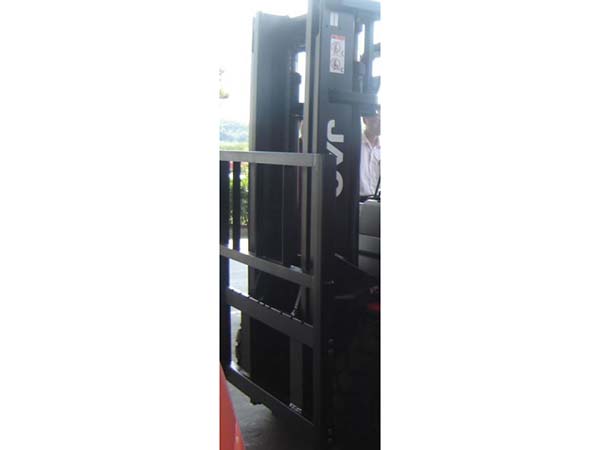

3. Mast

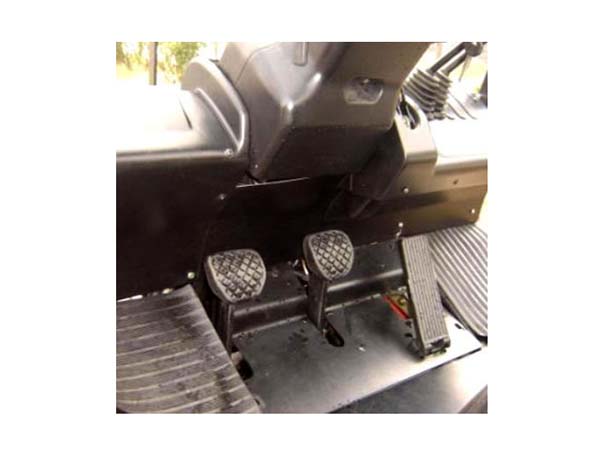

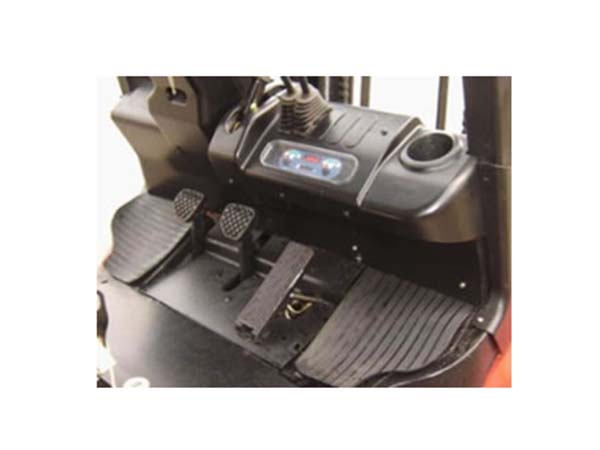

4. The spacious operation room can relieve the fatigue of the operator.

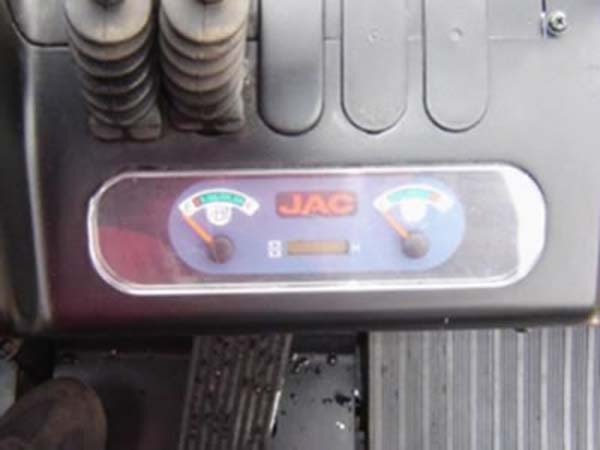

5. The instrument panel of the diesel powered lift truck is installed at right hand side. The simple design makes it easier for the operator to read the parameters.

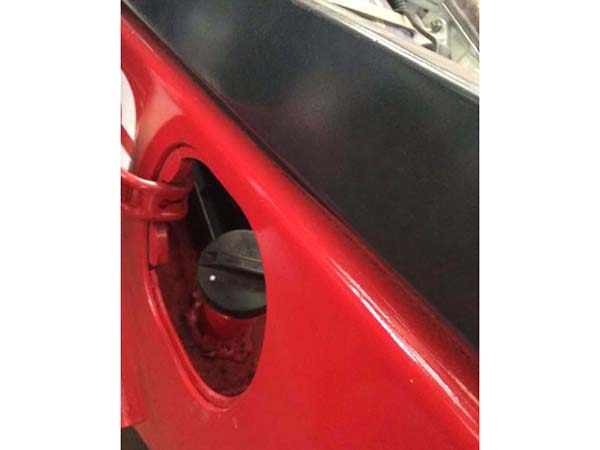

6. Practical and eye-catching, our diesel forklift adopts the fuel tank cap for cars.

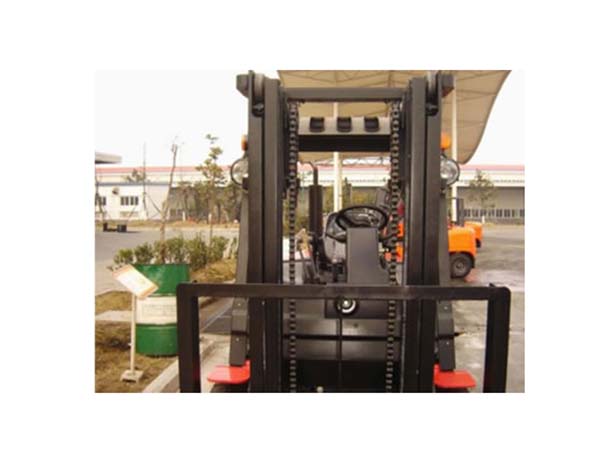

7. Wide field of view for high safety and high working efficiency.
