Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Brand:
JACItem NO.:
CPCD20H， CPCD25HPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD20H
CPCD25H
Features
Power type
Diesel
Rated load（kg）
2000
2500
Load center distance（mm）
500
Lift height（mm）
3000
Free lift height（mm）
140
Fork size
L×W×T（mm）
1070×122×40
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
2170
2230
Minimum right angle stacking aisle width（mm）
3635
3695
Minimum right angle aisle width（mm）
2370
2430
Minimum ground clearance
Frame center(no load)（mm）
115
Mast Bottom（no load）（mm）
110
Height of overhead guard（mm）
2070
Overhang (FR)（mm）
465
Performance
Maximum travel speed
Full load（km/h）
18
No load（km/h）
18
Maximum lift speed
Full load（mm/s）
500
No load（mm/s）
700
Maximum drawbar pull
Full load（KN）
11.7
11.4
Maximum gradeability（%）
20
18
Dimensions
Overall length
Without forks（mm）
2485
2560
Overall width（mm）
1160
Mast height at maximum lift (with backrest)（mm）
4030
Mast lowered height（mm）
1995
Chassis
Tires
Front wheel
7.00-12-12PR
Rear wheel
6.00-9-10PR
Wheelbase（mm）
1600
Tread
Front wheel/rear wheel（mm）
970/970
Self weight
Without load（Kg）
3300
3660
Drive
Battery
Voltage/capacity（V/Ah）
12/80
Engine
Model
4D27G31
Xinchang
Rated output（kw/r.p.m）
36.8/2500
Rated torque（Nm/r.p.m）
156/1700-1900
Bore x stroke（mm）
90×105
Number of cylinders
4
Displacement（L）
2.67
Fuel tank capacity（L）
55
Transmissions (FWD/RWD)
1/1
manual shift
Operating pressure（Mpa）
18.5
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
2/2
Lowering speed (full load)（mm/s）
450
Lowering speed (no load)（mm/s）
500
Axle load distribution (full load) (FR/RR)（kg）
4770/530
5544/616
Axle load distribution (no load) (FR/RR)（kg）
1320/1980
1464/2196
Selling Point

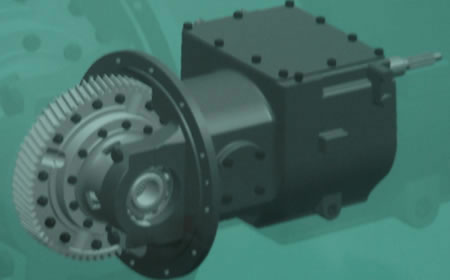

1. The H series diesel forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.

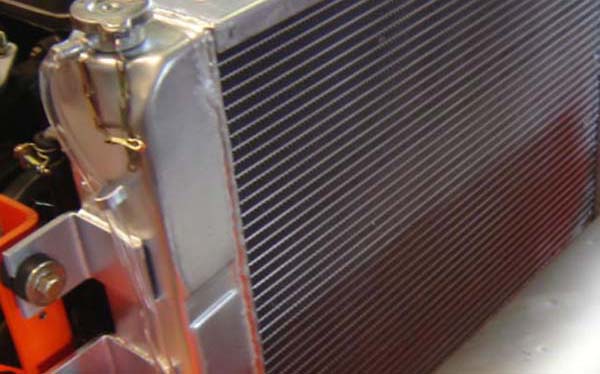

2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.

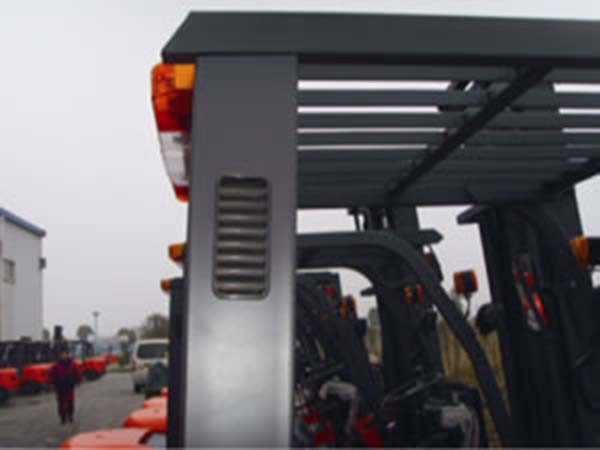

3. The air intake system of the diesel forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.

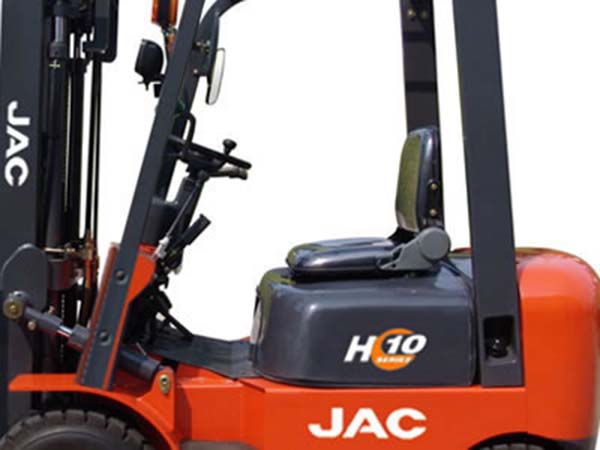

4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.

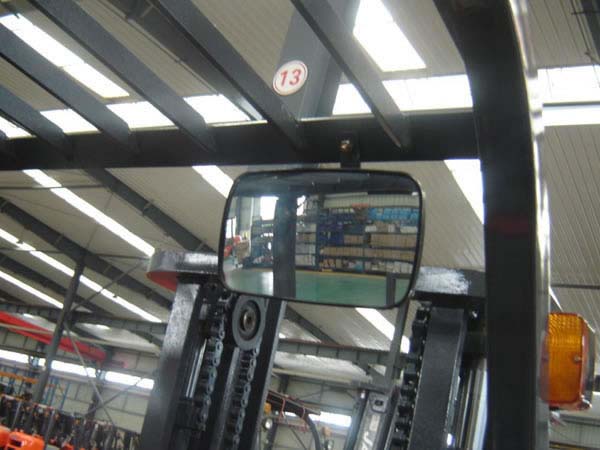

5. Wide field of view
6. Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of our product.
7. Big opening angle of the hood makes the maintenance of the fork truck easier.
