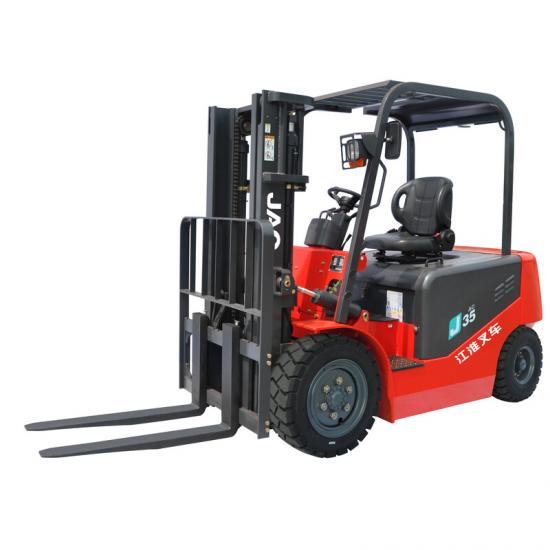

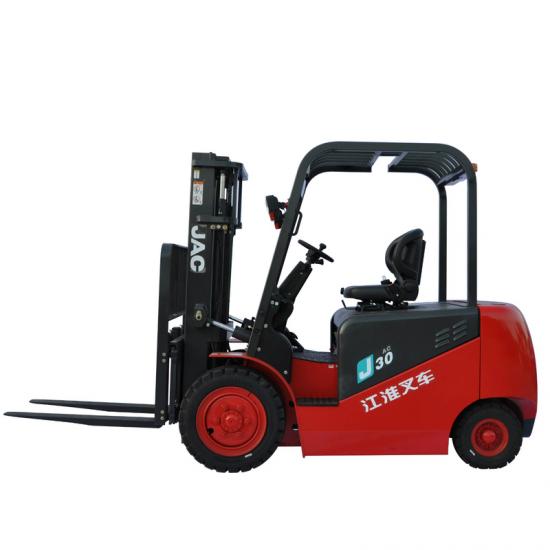

Electric Forklift Truck 2 ton to 3.5 ton

Environmentally friendly electric counterbalanced forklift with curtis electronic control system, no noise and pollution
Loading capacity: 2 ton, 2.5 ton, 3 ton, 3.5 ton
Capacity: 20,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CPD20J, CPD25J, CPD30J, CPD35J
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    25 days
  • Product Details

1. Advantage

Applies CURTIS LCD instrument panel with good resistance to water and vibration. Important information can be displayed on the screen completely, enabling the user to understand the working conditions all the time.

Simple design of the cab creates comfortable working environment for the operator.

Comes with enclosed type dashboard.
. Combined type taillight makes this forklift attractive and noticeable.
Since the foot brake pedal is slightly higher than the Curits accelerator, this forklift offers high comfort during operation.


2. Features

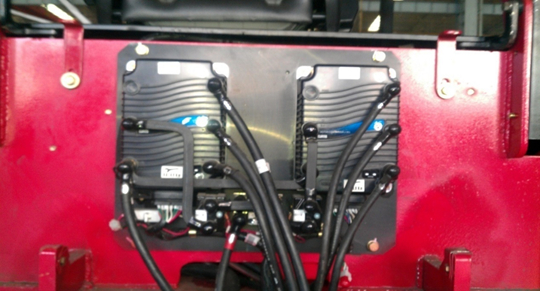

Imported Curtis controller configuration, while using the new installation which has won national patent to achieve better thermal performance.

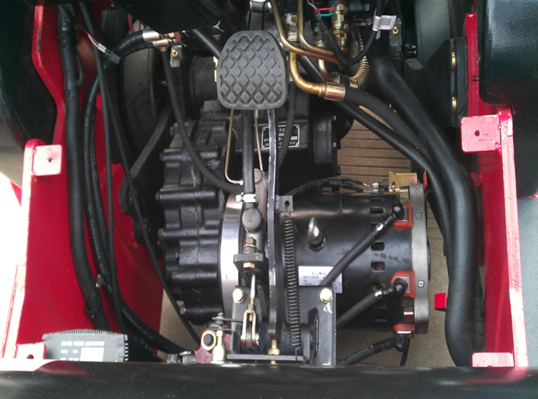

Transverse gearbox, high transmission efficiency, effectively improve every battery operating time.

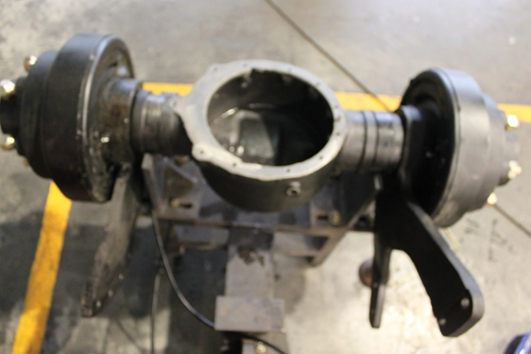

Plate type fan drive axle which can make rotated 360 °, has obtained national patent, which greatly facilitates the repair of motor and gearbox.

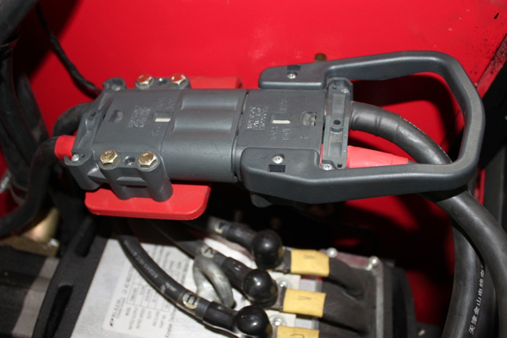

REMA power connector plug makes more convenient and safer.

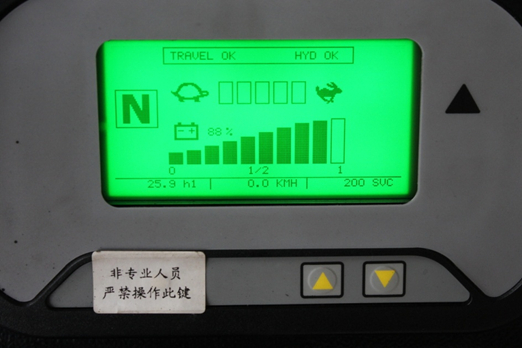

Curtis Liquid crystal instrument, waterproof, shockproof, reliable, completely shows important information for the operator to have a direct and dynamic information.


3. Specification

Model CPD20J CPD25J CPD30J CPD35J
1 Feature Power Type Battery
2 Load Capcity kg 2000 2500 3000 3500
3 Load center mm 500 500 500 500
4 Lift height mm 3000 3000 3000 3000
5 Free lift height mm 155 155 160 160
6 Forkk size L*W*H mm 1070×122×40 1070×122×40 1070×125×45 1070×125×50
7 Mast tilt FR/RR 6/12 6/12 6/12 6/12
8 Min turning Radius mm 2200 2200 2280 2280
9 Min Right angle stacking aisle width mm 3865 3865 4181 4204
10 Min right angle aisle width mm 2400 2400 2609 2720
11 Min ground clearance mm 110 110 120 120
12 Height of overhead guard mm 2172 2172 2180 2180
13 Overhang(FR) mm 465 465 474 492
14 Performance Max driving speed Full load km/h 12 12 12 12
15 Max Lifting speed Full load mm/s 240 280 220 280 240 260 200 240
16 Max drawbar pull Full load KN 17 17 17 17 21 21 21 21
17 Gradeabiity % 15 15 15 15 15 15 10 10
18 Dimension Overall length Without forks mm 2435 2435 2603 2603
19 Over width mm 1163 1163 1250 1250
20 Height mast lifted(with backrest mm 4030 4030 4228 4228
21 Height mast lowered mm 1995 1995 2065 2120
22 Power Tyre Front 7.00-12-12PR 7.00-12-12PR 28×9-15-14PR 28×9-15
23 Rear 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR 18×7-8
24 Wheelbase mm 1520 1520 1700 1700
25 Tread FR/RR mm 973/960 973/960 1000/990 1000/990
26 Self weight Without load kg 3850 4220 4960 5540
27 Battery Voltage/capacity V/Ah 48/600 48/630 80/500 80/550
28 motor Driving KW 11.1 11.1 11.1 11.1 16.6 16.6 16.6 16.6
29 lifting KW 8.6 12 8.6 12 13 13.5 13 13.5
30 Controller CURTIS CURTIS CURTIS CURTIS CURTIS CURTIS CURTIS CURTIS
31 Way of Contrl DC AC DC AC DC AC DC AC
32 Operating pressure Mpa 18.5 18.5 18.5 18.5
