Electric counterbalanced forklift with curtis electronic control system, no noise and pollution, environmentally friendly
Loading capacity: 1.3 ton, 1.6 ton, 1.8 ton
Capacity: 20,000 units/year
Brand:
JACItem NO.:
CPD13J, CPD16J, CPD18JPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantities)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 days1. Advantage
. The forklift comes with enclosed type dashboard. Simple design of the cab creates comfortable working environment for the operator.
. Combined type taillight makes this four wheel forklift attractive and noticeable.
. Since the foot brake pedal is slightly higher than the CURTIS accelerator, this forklift offers high comfort during operation.
. Applies CURTIS LCD instrument panel with good resistance to water and vibration. Important information can be displayed on the screen completely, enabling the user to understand the working conditions of the product.
2. Features

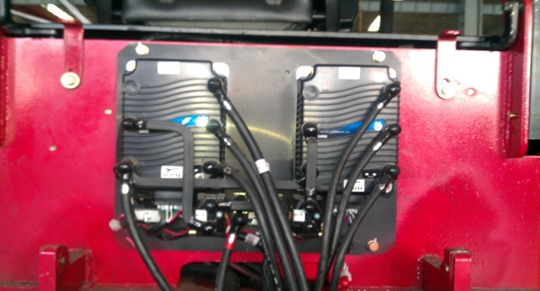

Imported Curtis controller configuration, while using the new installation which has won national patent to achieve better thermal performance

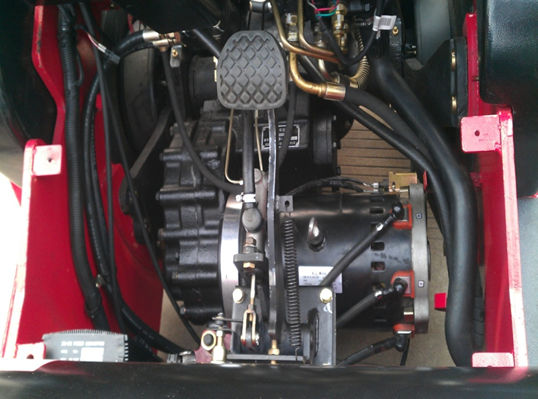

Transverse gearbox, high transmission efficiency, effectively improve every battery operating time.

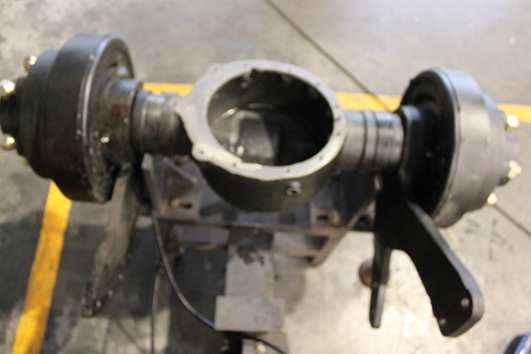

Plate type fan drive axle which can make rotated 360 °, has obtained national patent, which greatly facilitates the repair of motor and gearbox.

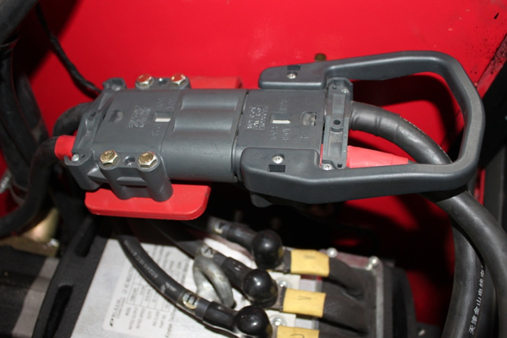

REMA power connector plug makes more convenient and safer.

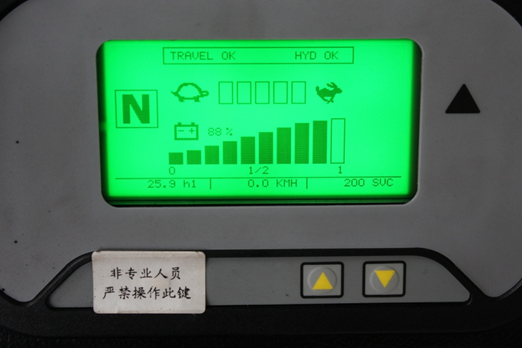

Curtis Liquid crystal instrument, waterproof, shockproof, reliable, completely shows important information for the operator to have a direct and dynamic information.
3. Specification
Model
CPD13J
CPD16J
CPD18J
1
Feature
Power Type
Battery
2
Load Capcity
kg
1300
1600
1800
3
Load center
mm
500
500
500
4
Lift height
mm
3000
3000
3000
5
Free lift height
mm
135
135
135
6
Forkk size
L*W*H
mm
920×100×35
920×100×35
920×100×35
7
Mast tilt
FR/RR
。
6/10
6/10
6/10
8
Min turning Radius
mm
1990
2030
2030
9
Min Right angle stacking aisle width
mm
3397
3437
3437
10
Min right angle aisle width
mm
2190
2230
2230
11
Min ground clearance
mm
93
93
93
12
Height of overhead guard
mm
2132
2132
2132
13
Overhang(FR)
mm
407
407
407
14
Performance
Max driving speed
Full load
km/h
12
12
12
15
Max Lifting speed
Full load
mm/s
460
460
460
460
460
460
16
Max drawbar pull
Full load
KN
13
13
13
13
13
13
17
Gradeabiity
%
15
15
15
15
15
15
18
Dimension
Overall length
Without forks
mm
2158
2220
2220
19
Over width
mm
1072
1072
1072
20
Height mast lifted(with backrest）
mm
3930
3930
3930
21
Height mast lowered
mm
1990
1990
1990
22
Power
Tyre
Front
6.00-9-10PR
6.00-9-10PR
6.00-9-10PR
23
Rear
5.00-8-10PR
5.00-8-10PR
5.00-8-10PR
24
Wheelbase
mm
1370
1370
1370
25
Tread
FR/RR
mm
894/920
894/920
894/920
26
Self weight
Without load
kg
2840
3000
3120
27
Battery
Voltage/capacity
V/Ah
48/400
48/400
48/500
28
motor
Driving
KW
8
8
8
8
8
8
29
lifting
KW
7.5
10
7.5
10
7.5
10
30
Controller
CURTIS
CURTIS
CURTIS
CURTIS
CURTIS
CURTIS
31
Way of Contrl
DC
AC
DC
AC
DC
AC
32
Operating pressure
Mpa
15.5
15.5
15.5
