/3-Wheel Electric Forklift Truck 1ton to 2ton

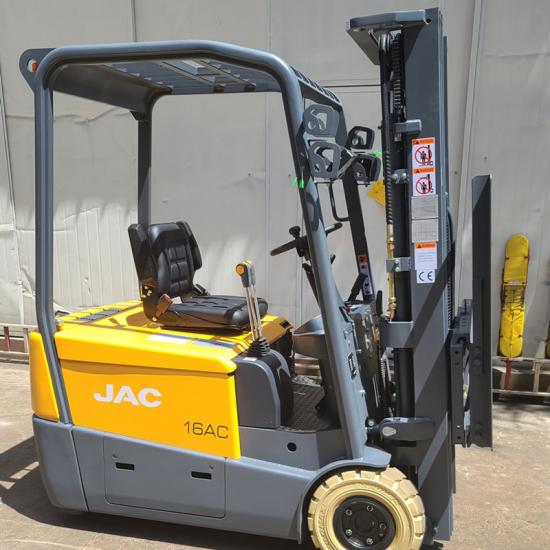

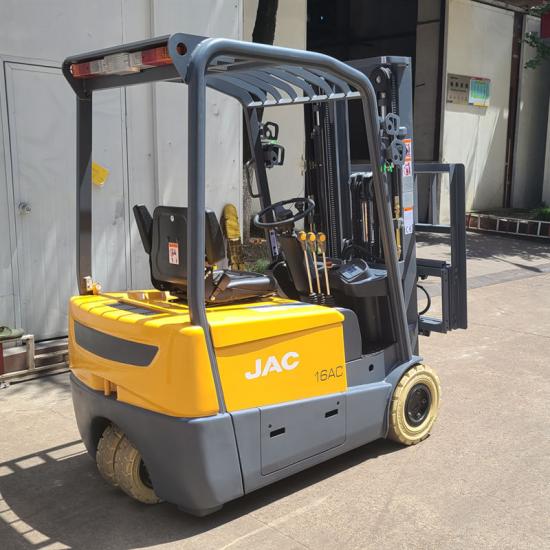

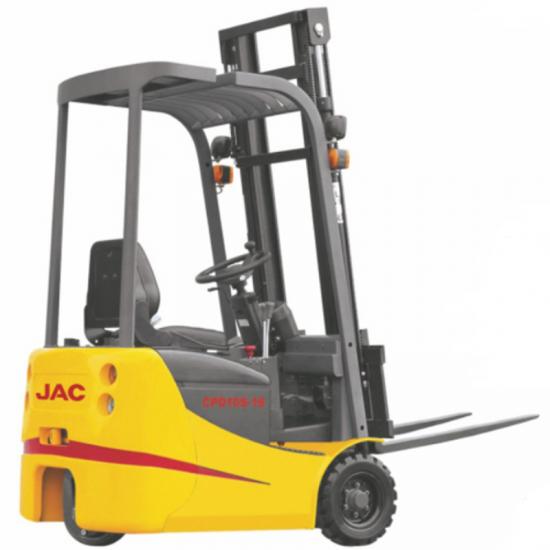

3-Wheel Electric Forklift Truck 1ton to 2ton

Three-wheel electric forklift truck, no noise and pollution, environmentally friendly, especially suitable for high-efficiency handling operations in the warehouse with narrow aisles

Loading capacity: 1ton, 1.6ton, 1.8ton, 2ton

Capacity: 5000units/year

  • Brand:

    JAC
  • Item NO.:

    CPD10SA,CPD16SA,CPD18SA.CPD20SA
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large qty)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    30 days
  • Product Details

3-Wheel Electric Forklift Truck 1ton to 2ton


Advantages:

SAFETY AND STABLITY
1. Germany imported driving axle.
2. AC control system CURTIS with sensitive reaction.
3. Multifunctional display with using time , fault code, battery status, forklift running information.
4. AC driving motor without brush, free of maintenance.
5. AC motor with regenerative braking.
6. Three running modes according to different needs: low speed, moderate speed and high speed.
7. Wet disk brake can make the forklift break stably, ensures high durability and safety.
8. Very small turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.

ERGONOMICS
1. With two step pedal easy to get into the driving cab.
2. Adjustable steering wheel column , the driver can adjust the position according to his need.
3. Integrated light switch and steering wheel. 4. ABS instrument board in the driving-box is durable and beautiful.
5. The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
6. clearly and wide view mast with good visibility.

7. Emergency power cut off plug for emergency stop.


 SERVICE ABILITY
1. Easy maintained controller and steering potentiometer.
2. maintenance free wet disk brake.
3. Lifting and driving AC motors without carbon brush free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
4. Over discharge protecting system: While the battery discharges less than 20%, the instrument warming light will light.
5. Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.

6. Side way battery box is easy to change battery. it is safety and convenient.

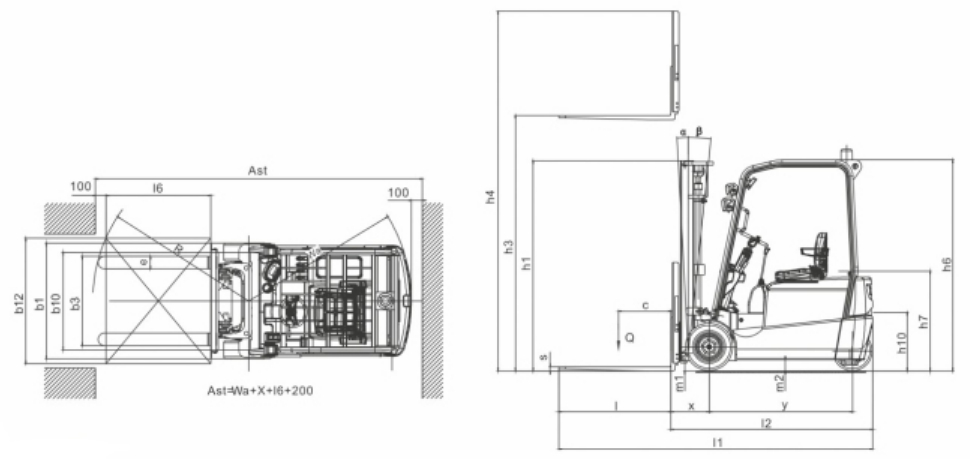

Model CPD10SA CPD16SA CPD18SA CPD20SA
Drive Rear Wheel Drive Dual Front Drive Wheel
Operation type seated seated seated seated
Load capacity/rated load Q(kg) 1000 1600 1800 2000
Load center distance c(mm) 500 500 500 500
Load distance,center of drive axle to fork x(mm) 284 358 358 358
Wheelbase y(mm) 1080 1362 1362 1465
Service weight (with battery) kg 2180 3220 3280 3450
Axle loading,laden front/rear kg 2700/480 3955/865 4166/914 4469/981
Axle loading,unladen front/rear kg 720/1460 1425/1795 1455/1826 1625/1997
Tyres:solid rubber, superelastic, pneumatic,polyurethane  super elastic solid tires
Tyre size, front 16x6x101/2 18×7-8 200/50-10 200/50-10
Tyre size, rear 280×100/PU 15×41/2-8 15×41/2-8 140/55-9
Wheels,number front rear(x=driven wheels) 2/1x 2x/2 2x/2 2x/2
Tread,front b10(mm) 892 920 937 937
Tread,rear b11(mm) 0 165 165 188
Tilt of mast/fork carriage forward/backward 3/6 3/6 3/6 3/6
Height,mast lowered h1(mm) 2126-2240 2000-2660 2000-2660 2000-2660
Free lift h2(mm) option option option option
Lift Height h3(mm) 3000-5000 3000-6200 3000-6200 3000-6200
Height,mast extended h4(mm) 3617-5617 4050-7250 4050-7250 4050-7250
Height of overhead guard(cabin) h6(mm) 1965 2005 2005 2005
Seat height/stand height h7(mm) 850 938 938 938
Coupling height h10(mm) 480 560 560 560
Overall length l1(mm) 2495 2880 3000 3100
Length to face of forks l2(mm) 1575 1930 1930 2030
Overall width b1(mm) 1012 1070 1130 1130
Fork dimensions s/e/l(mm) 35/100/950 35/100/950 40/100/1070 40/120/1070
Fork carriage DIN 15173,class/type A,B 2A 2A 2A 2A
Fork-carriage width b3(mm) 900 1088 1088 1088
Ground clearance,laden,below mast m1(mm) 100 90 90 90
Ground clearance,centre of wheelbase m2(mm) 85 100 100 100
Aisle width for pallets 1000*1200 cross-ways Ast(mm) 2950 3120 3120 3200
Aisle width for pallets 800*1200 length-ways Ast(mm) 3050 3220 3220 3300
Turning radius Wa(mm) 1290 1552 1552 1652
Travel speed,laden/unladen Km/h 6.5/6.5 14/14 14/14 13/13
Lift speed,laden/unladen mm/s 150/180 290/450 270/420 250/420
Lowering speed, laden/unladen mm/s <600 <600 <600 <600
Max.gradeability,laden/unladen % 10/15 15/20 15/20 15/20
Battery voltage,nominal capacity K5 V/Ah 24/400 48/420(490) 48/490(560) 48/560(640)
Battery weight kg 330 720 760 800
Sound level at the driver’s ear acc.to DIN 12053 dB(A) 68 68 68 68
