LPG counterbalanced forklift, Chinese engine and Nissan engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
what are you looking for?
Counterbalanced forklift with LPG Engine, Chinese engine and Nissan engine for option
Loading capacity: 1 ton, 1.5 ton, 1.8 ton
Capacity: 20,000 units/year
Brand:
JACItem NO.:
CPQYD10, CPQYD15, CPQYD18Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantities)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 days
LPG Forklift Truck 1 ton to 1.8 ton
1. Advantage
. IMPCO gas conversion device；
. Japanese Nissan engine for optional;
. Wide field of view for operator;
. Big opening angle of the hood makes the easier maintenance of the forklift;
. Attractive and unique appearance of the product.
2. Features

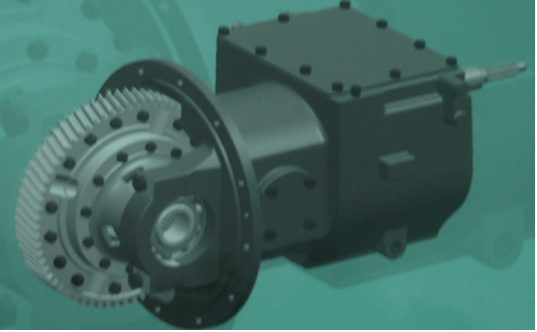

Equipped with a mechanical synchronizer, soft and smooth gear switching, avoid collision between gears to reduce noise, increase gears working life.

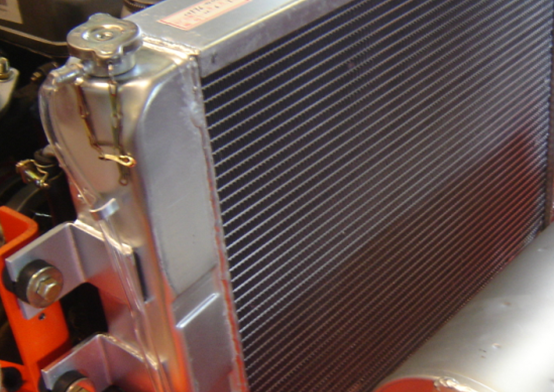

With aluminum radiator which has been widely used on forklift, makes better cooling effect.
High air intake system, effectively prevent dust being absorbed, therefore extend working life of the engine.

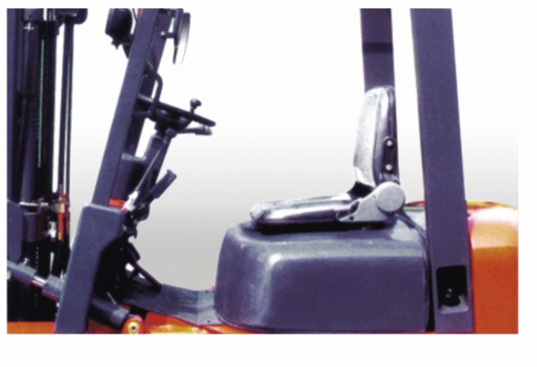

Position of the seat and the angle of the steering wheel are adjustable, improve operating room, makes comfort to drive.

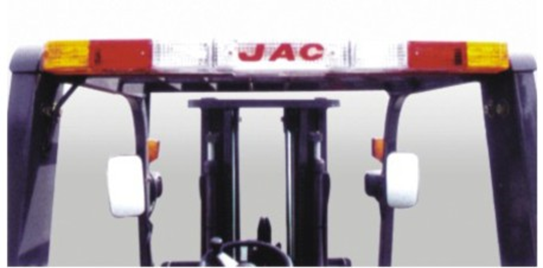

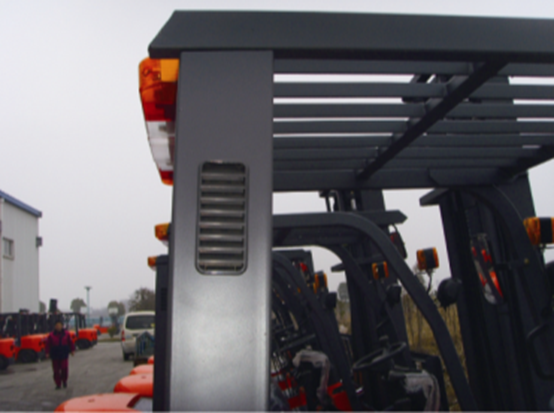

Fashionable appearance, combined tail lamps at the back of overhead guard, noticeable and obvious, provide safer working condition and more suitable for night operations, exterior design obtained national patent.
3. Specification
Model
CPQYD10
CPQYD15
CPQYD18
1
Feture
Power Type
LPG
2
Load Capcity
kg
1000
1500
1800
3
Load center
mm
500
4
Lift height
mm
3000
5
Free lift height
mm
155
6
Forkk size
L*W*H
mm
920×100×40
7
Mast tilt
FR/RR
。
6/12
8
Min turning Radius
mm
1880
1955
1985
9
Min Right angle stacking aisle width
mm
3290
3365
3395
10
Min right angle aisle width
mm
2080
2155
2185
11
Min ground clearance
mm
110
12
Height of overhead guard
mm
2060
13
Overhang
mm
410
14
Performance
Max driving speed
Full load
km/h
14.5
15
Max Lifting speed
Full load
mm/s
550
16
Max drawbar pull
Full load
KN
12
14
19
17
Gradeabiity
%
20
18
Dimension
Overall length
Without forks
mm
2160
2234
2271
19
Over width
mm
1080
20
Height mast lifted(with backrest）
mm
3930
21
Height mast lowered
mm
2010
22
Chassis
Tyre
Front
6.50-10-10PR
23
Rear
5.00-8-10PR
24
Wheelbase
mm
1400
25
Tread
FR/RR
mm
891/920
26
Self weight
Without load
Kg
2430
2790
2890
27
Drive
Battery
Voltage / Capacity
V/Ah
12/80
28
Engine
Model
BAOFA BF4Y
29
Rated Power
kw/r.p.m
36/2500
30
Rated Torque
Nm/r.p.m
150/1800
31
Bore * sTROKE
mm
91×86
32
No.of Cylinder
4
33
Displacement
L
2.237
34
Fuel tank capacity
L
49
35
Transmission
1/1manual shift
36
Operating Pressure
Mpa
15.5
37
Supplement
Tire type (FR/RR)
Pneumatic
38
Numbers of wheels
pcs
2/2
39
lowering speed (full load)
mm/s
430
40
Lowering speed ( unload)
mm/s
530
41
Axle load distribution (full load) (FR/RR)
kg
2840/380
3640/520
4040/600
42
Axle load distribution (unload) (FR/RR)
kg
1220/1020
1170/1490
1140/1750
