/Scissor Fork Reach Lift Truck 1.8 ton

Scissor Fork Reach Lift Truck 1.8 ton

Scissor Fork Reach Stacker with advanced AC control system
Loading capacity: 1.5 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

     CQDH18C
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    30 days
  • Product Details

1. Advantages

SAFETY AND STABILITY
•AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
•Two model function can control the speed of lift and lowering.
•Low center of gravity, excellent stability for operation.
•Small turning radius, good turning performance.
•With advanced variable frequency AC motor free maintenance and excellent performance.
•Can control the speed of driving and lifting in the same time.
•Shock absorber system support good noise reduction.
•Wide view mast and clear visibility.
•With full free lifting, can work in the limited roof environment.
•Import proportional hydraulic valve, adjustable speed for lifting/lowering.
•Muti-function display: battery status, hour meter, fault code, slow running state, etc.
•Big power controller (350A) with big power electric motor (10KW), support excellent reliability.
•Double scissors reach fork let the reach distance up to 1000mm.
•The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.
•With advanced 36V electric control system, smaller electric current, ensure the reliability of the battery system.
•High speed of lifting and lowering, 300% faster than normal type truck.

SERVICEABILITY
•Side way battery is very convenient to do maintenance and replace batteries.
•CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck`s reliability and easy to repair.
•The Mast can be separate from the frame, very good interchange ability(option).




2. Specification

Model CQDH18C(Single Scissor) CQDH18C(Single Scissor) CQDH18C(Double Scissor) CQDH18C(Double Scissor)
Drive type battery battery battery battery
Capacity/Rated load Q(kg) 1800 1800 1000 1000
Load centre distance c(mm) 600 600 600 600
Load distance, centre of drive axle to fork x(mm) 246 246 123 123
Tyre size, front mm 280×82+160x60x2 280×82+160x60x2 280×82+160x60x2 280×82+160x60x2
Tyre size, rear mm 125×82(4) 125×82(4) 125×82(4) 125×82(4)
Wheels, number front rear(x=driven wheels) 1x+2/4 1x+2/4 1x+2/4 1x+2/4
Tilt of mast/fork carriage forkward/backward Grad 2/5 2/5 2/5 2/5
Height,mast lowered h1(mm) 2125/2375/2625 2185/2345/2505/2675 2125/2375/2625 2185/2345/2505/2675/2840
Free lift h2(mm) ~ 1575/1700/1825/2000 ~ 1575/1700/1825/2000/2125
Max.lift height h3(mm) 3000/3500/4000 4500/5000/5500/6000 3000/3500/4000 4500/5000/5500/6000
Height, mast extended h4(mm) 3900/4400/4900 5400/5900/6400/6900 3000/3500/4000 4500/5000/5500/6000/6500
Height of overhead guard h6(mm) 2246 2246 2246 2246
Length to face of forks l2(mm) 1618 1618 1726 1750
Overall length l1(mm) 2716 2716 2585 2609
Overall width b1/b2(mm) 1295/1040 1295/1040 1298/1040 1298/1040
Fork Dimension s/e/l(mm) 40/100/1070 40x100x1070 40/100/1070 40x100x1070
Reach distance  l4(mm) 500 500 1200 1200
Fork height, lowered h8(mm) 130 130 130 130

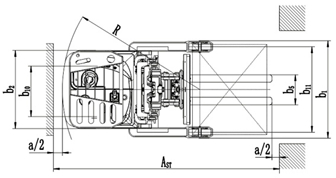

Distance of “X”(see below diagram) mm 450 450 450 450
Overall length(excluding the fork) mm 2023 2023 2023 2023
Ground clearance, centre of wheelbase m2(mm) 49 49 49 49
Aisle width for pallets 1000×1200 croossways Ast(mm) 3013 3013 3110 3131
Aisle width for pallets 800×1200 lengthways Ast(mm) 3085 3085 3197 3220
Turning radius Wa(mm) 1848 1848 1848 1848
Travel speed, laden/unladen Km/h 6.5/7 6.5/7 6.5/7 6.5/7
Lift speed, laden/unladen m/s 0.2/0.3 0.2/0.3 0.2/0.3 0.2/0.3
Lowering speed, laden/unladen m/s 0.32/0.312 0.32/0.312 0.32/0.312 0.32/0.312
Battery voltage,nominal capacity K5 V/Ah 36/700 36/700 36/700 36/700
Battery weight Kg 810 810 810 810
Battery dimensions l/w/h mm 978x395x765 978x395x765 978x395x765 978x395x765
Service weight(with battery) kg 3310/3360/3410 3550/3650/3750/3850 3460/3510/3560 3700/3800/3900/4000/4100
