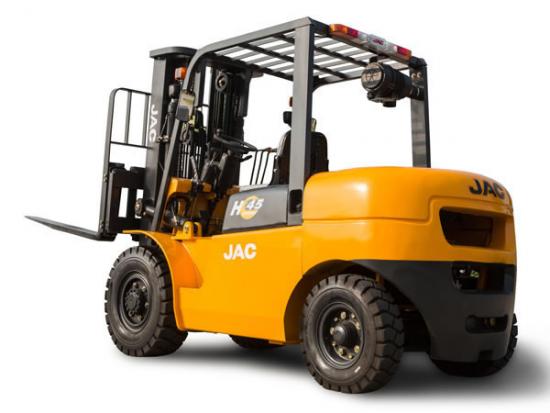

Counterbalanced forklift with Diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
what are you looking for?
Brand:
JACItem NO.:
CPCD40H, CPCD45HPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD40H
CPCD45H
Features
Power type
Diesel
Rated load（kg）
4000
4500
Load center distance（mm）
500
Lift height（mm）
3000
Free lift height（mm）
135
150
Fork size
L×W×T（mm）
1070×150×50
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
2835
2750
Minimum right angle stacking aisle width（mm）
4325
4695
Minimum right angle aisle width（mm）
3035
2612
Minimum ground clearance
Frame center(no load)（mm）
212
200
Mast Bottom（no load）（mm）
138
150
Height of overhead guard（mm）
2140
2265
Overhang (FR)（mm）
490
547
Performance
Maximum travel speed
Full load（km/h）
19.5
19
No load（km/h）
19.6
21
Maximum lift speed
Full load（mm/s）
430
500
No load（mm/s）
490
530
Maximum drawbar pull
Full load（KN）
21.8
40
Maximum gradeability（%）
15
20
Dimensions
Overall length
Without forks（mm）
2950
3102
Overall width（mm）
1435
1480
Mast height at maximum lift (with backrest)（mm）
4260
4230
Mast lowered height（mm）
2125
2265
Chassis
Tires
Front wheel
250-15-16PR
2-300-15-20PR
Rear wheel
6.50-10-10PR
2-7.00-12-12PR
Wheelbase（mm）
1900
2000
Tread
Front wheel/rear wheel（mm）
1160/1065
1182/1202
Self weight
Without load（Kg）
5200
6550
Drive
Battery
Voltage/capacity（V/Ah）
12/80
24/160
Engine
Model
4D32G31
4DX23
Xinchang
Xichai
Rated output（kw/r.p.m）
36.8/2500
60/2200
Rated torque（Nm/r.p.m）
186/1600-1800
320/1400-1700
Bore x stroke（mm）
98×105
102×118
Number of cylinders
4
Displacement（L）
3.17
3.857
Fuel tank capacity（L）
66
90
Transmissions (FWD/RWD)
1/1
manual shift
2/1
manual shift
Operating pressure（Mpa）
18.5
19.5
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
2/2
Lowering speed (full load)（mm/s）
480
520
Lowering speed (no load)（mm/s）
450
510
Axle load distribution (full load) (FR/RR)（kg）
8280/920
10340/960
Axle load distribution (no load) (FR/RR)（kg）
2080/3120
2700/3540
Selling Point

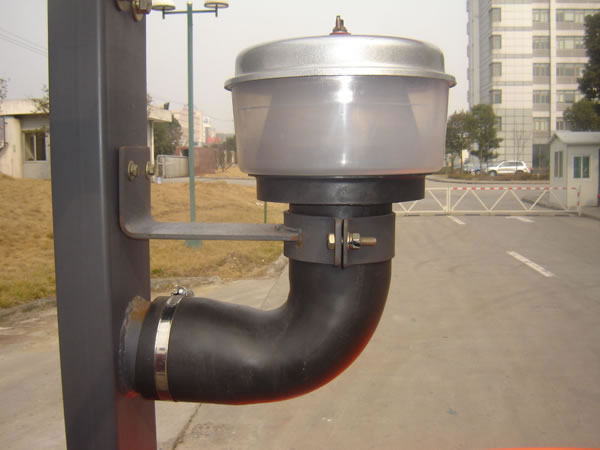

1. The air intake system installed at high level, as well as the two air filters of the warehouse equipment, offers full protection to the engine of the diesel forklift.

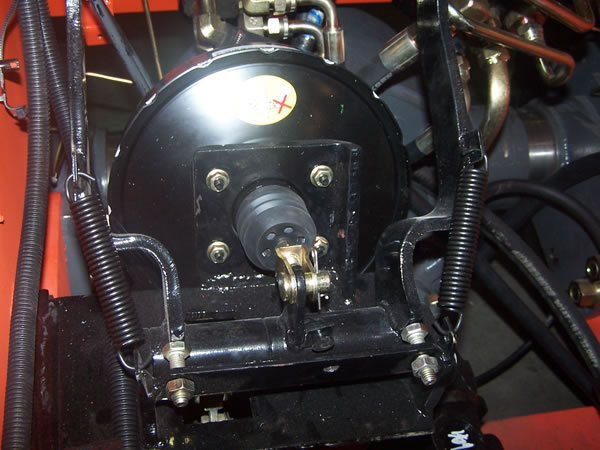

2. The drum brake and the vacuum servo enable convenient and sensitive car braking.
3. Smartly designed, the V shape engine mount of the diesel forklift effectively reduces the vibration during operation and creates comfortable working environment for the operator.

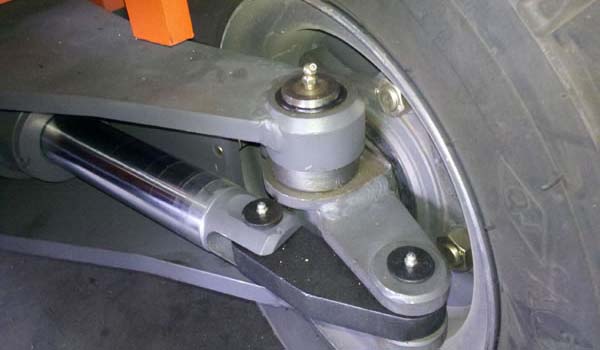

4. To extend the lifespan of the bearing and the kingpin, oilless bearing is adopted for self-lubrication.
5. The tailstock of the material handling equipment adopts integrated design to enhance the shock resistance performance of the product. The technology has been granted the national patent.

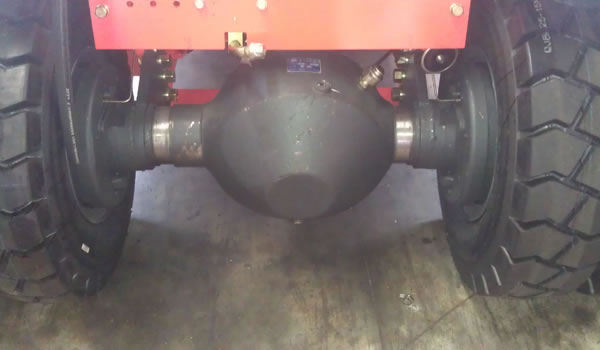

6. Our patented technologies-10T main reducing gear and the axle housing effectively improve the bearing capacity of the drive axle.
7. Since the fork arm carrier of the container forklift truck is installed with 6 idler wheels, the diesel forklift is quite suitable for high-strength working conditions.

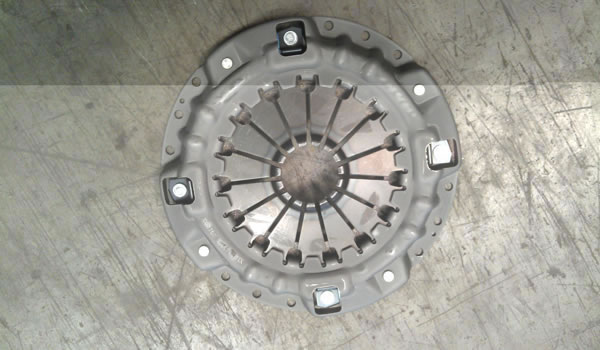

8. Diaphragm type clutch pressure plate and the patented shift fork enable convenient operation of the clutch.
