/4 Wheel Diesel Forklift Truck 12 ton to 18 ton

4 Wheel Diesel Forklift Truck 12 ton to 18 ton

Counterbalanced forklift with Diesel Engine, large loading capacity, Chinese engine, Cummins engine for option
Loading capacity: 12 ton, 15 ton, 16 ton, 18 ton
Capacity: 20,000 units/year
  • Brand:

    JAC
  • Item NO.:

    CPCD120, CPCD150, CPCD160, CPCD180
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    35 days
  • Product Details

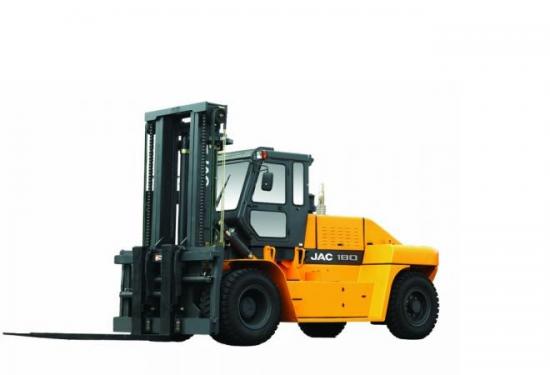

Diesel Forklift Truck 12 ton to 18 ton

Counterbalanced forklift with Diesel Engine, large loading capacity, Chinese engine, Cummins engine for option


1. Features

Scientifically designed power transmission system

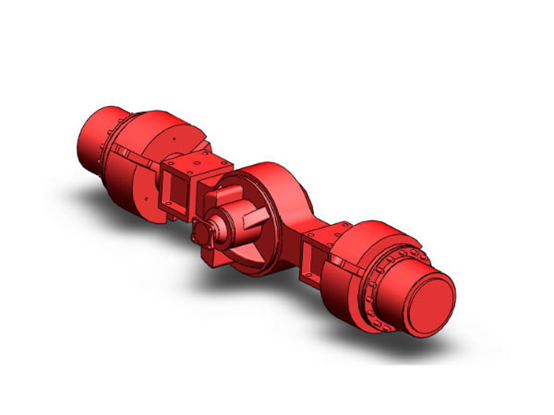

Dedicated twin axle for heavy-load lift truck

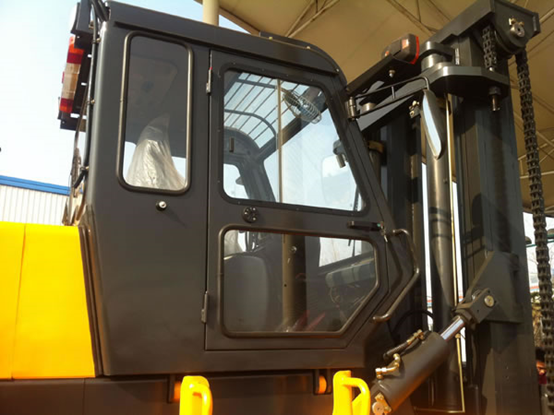

The tip-over of the spacious cab can be controlled manually or electrically.


2. Specification

 Model CPCD120 CPCD150 CPCD160 CPCD180
1 Features  Powe type Diesel Diesel Diesel Diesel
2  Rated load kg 12000 16000 16000 18000
3  Load center distance mm 600 900 900 900
4  Lift height mm 3000 4000 4000 4000
5 Free lift height mm 85 100 100 100
6 Fork size  L×W×T mm 1820×200×85 2400×250×90 2400×250×90 2400×250×90
7 Mast tilt angle FR/RR 8/10 8/10 8/10 8/10
8 Minimum turning radius mm 4750 5250 5250 5250
9 Minimum right angle stacking aisle width mm 8485 9176 9176 9176
10 Minimum right angle aisle width mm 4486 4354 4354 4354
11 Minimum ground clearance Frame center(no load) mm 320 350 350 350
12 Mast Bottomno load mm 210 265 265 265
13  Height of overhead guard mm 3060 3300 3300 3300
14 前悬距 Overhang (FR) mm 784 1040 1040 1040
15 Performance Maximum travel speed Full load km/h 20 18 18 18
No load km/h 24 20 20 20
16 Maximum lift speed Full load mm/s 370 220 220 220
No load mm/s 400 300 300 300
17 Maximum drawbar pull Full load KW 80 101 101 101
18 Maximum gradeability % 20 20 20 20
19 Dimensions  Overall length Without forks mm 4800 5885 5885 5885
20 Overall width mm 2600 2620 2620 2620
21 Mast height at maximum lift (with backrest) mm 4725 5845 5845 5845
22 Mast lowered height mm 3230 3850 3850 3850
23 Chassis Tires Front wheel 11.00-20-18PR 12.00-24-24PR 12.00-24-24PR 12.00-24-24PR
24 Rear wheel 11.00-20-18PR 12.00-24-24PR 12.00-24-24PR 12.00-24-24PR
25 Wheelbase mm 3000 3800 3800 3800
26 Tread Front wheel/rear wheel mm 1950/2050 1968/2248 1968/2248 1968/2248
27 Self weight Without load Kg 18700 25000 25000 26600
28 Drive Battery Voltage/capacity V/Ah 24/150 24/150 24/150 24/150

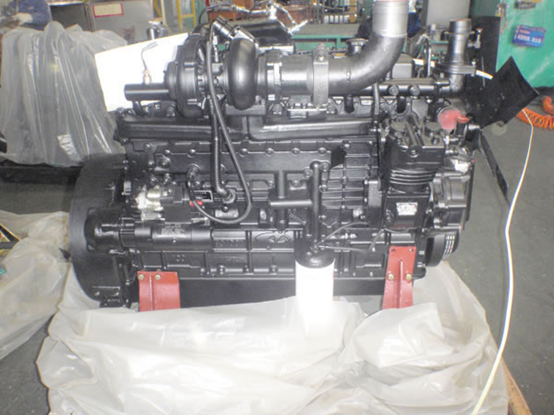

29 Engine Model CA6DF3 YC6J175-T302 YC6J175-T302 YC6J175-T302
30 Rated output kw/r.p.m 118/2200 129/2200 129/2200 129/2200
31 Rated torque Nm/r.p.m 640/1500 710/1600-1800 710/1600-1800 710/1600-1800
32 Bore x stroke mm 110×125 105×125                    105×125 105×125
33 Number of cylinders 6 6 6 6
34 Displacement L 7.127 6.494 6.494 6.494
35 Fuel tank capacity L 130 200 200 200
36 Transmissions (FWD/RWD) 2/2 electronic gearshifting 3/3 electronic gearshifting 3/3 electronic gearshifting 3/3 electronic gearshifting
37 Operating pressure Mpa 20 20 20 20
38 Supplement Tire type (FR/RR) Pneumatic Pneumatic Pneumatic Pneumatic
39 Number of wheels (FR/RR) 4/2 4/2 4/2 4/2
40 Lowering speed (full load) mm/s 410 410 410 410
41 Lowering speed (no load) mm/s 320 320 320 320
42 Axle load distribution (full load) (FR/RR) kg 27650/3050 36000/4000 37200/3800 40000/4600
43 Axle load distribution (no load) (FR/RR) kg 7500/11200 10200/14800 10200/14800 13000/13600
