Counterbalanced forklift with Diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
what are you looking for?
Brand:
JACItem NO.:
CPCD30J, CPCD35JPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD30J
CPCD35J
Features
Power type
Diesel
Rated load（kg）
3000
3500
Load center distance（mm）
500
Lift height（mm）
3000
Free lift height（mm）
155
Fork size
L×W×T（mm）
1070×125×45
1070×125×50
Mast tilt angle
Front/Rear
6°/12°
Minimum turning radius（mm）
2500
2575
Minimum right angle stacking aisle width（mm）
4285
4370
Minimum right angle aisle width（mm）
2495
2570
Minimum ground clearance
Frame center(no load)（mm）
160
Mast Bottom（no load）（mm）
135
Height of overhead guard（mm）
2105
Overhang (FR)（mm）
485
495
Performance
Maximum travel speed
Full load（km/h）
19
18
No load（km/h）
19.5
18.5
Maximum lift speed
Full load（mm/s）
460
430
No load（mm/s）
485
460
Maximum drawbar pull
Full load（KN）
21
23.5
Maximum gradeability（%）
20
Dimensions
Overall length
Without forks（mm）
2740
2805
Overall width（mm）
1230
Mast height at maximum lift (with backrest)（mm）
4230
4220
Mast lowered height（mm）
2065
Chassis
Tires
Front wheel
28×9-15-14PR
Rear wheel
6.50-10-10PR
Wheelbase（mm）
1700
Tread
Front wheel/rear wheel（mm）
1000/970
Self weight
Without load（Kg）
4300
4820
Drive
Battery
Voltage/capacity（V/Ah）
12/80
Engine
Model
AK-C240PKJ-30
4TNE98
Rated output（kw/r.p.m）
34.3～36.5/2500
42.1/2300
Rated torque（Nm/r.p.m）
137.7/1800
177.6～196.3/1700±100
Bore x stroke（mm）
86×102
98×110
Number of cylinders
4
Displacement（L）
2.369
3.319
Fuel tank capacity（L）
60
Transmissions (FWD/RWD)
1/1 electro-hydraulic directional valve
Operating pressure（Mpa）
17
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
2/2
Lowering speed (full load)（mm/s）
500
415
Lowering speed (no load)（mm/s）
490
400
Axle load distribution (full load) (FR/RR)（kg）
6340/920
7040/1080
Axle load distribution (no load) (FR/RR)（kg）
1700/2580
1720/3100
Features
1. The diesel forklift of J series is engineered in enclosed structure to reduce the noise and improve the comfort during operation.

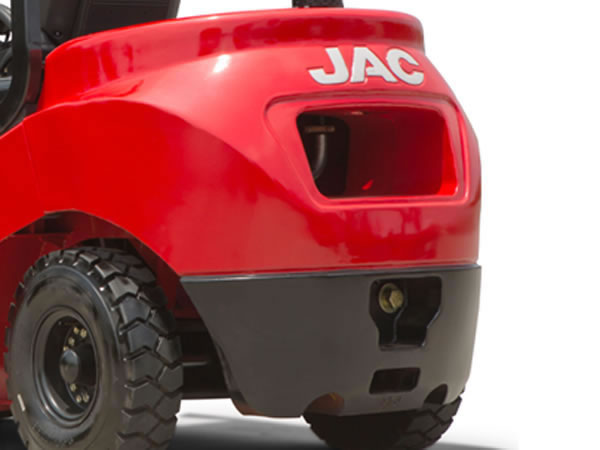

2. Newly-developed design for the balance weight makes the forklift truck quite attractive.

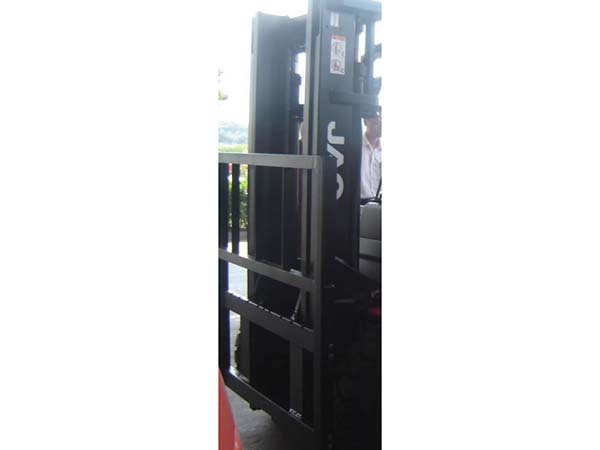

3. Mast

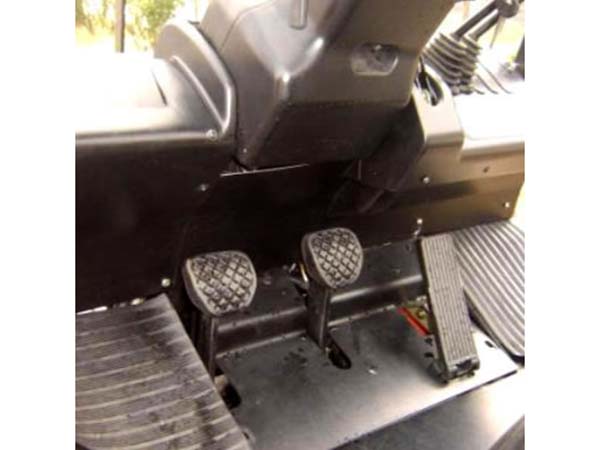

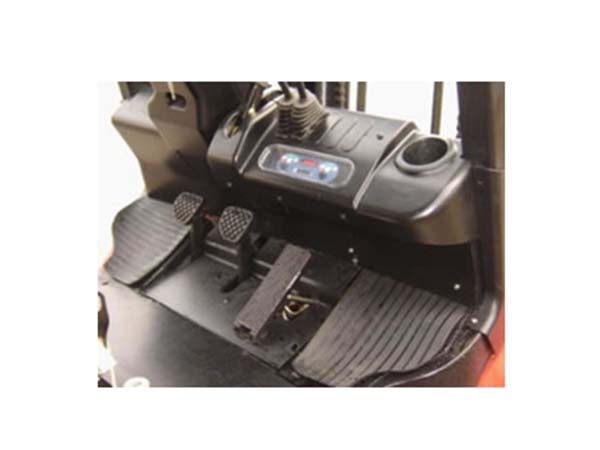

4. The spacious operation room can relieve the fatigue of the operator.

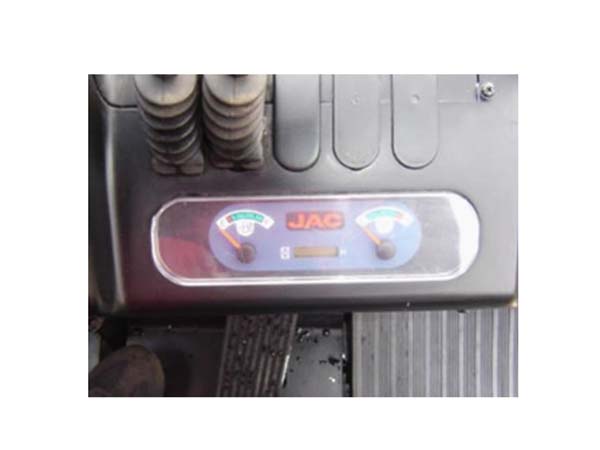

5. The instrument panel of the diesel powered lift truck is installed at right hand side. The simple design makes it easier for the operator to read the parameters.

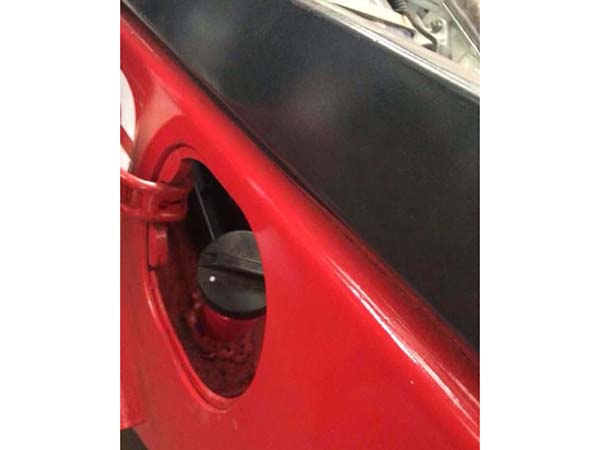

6. Practical and eye-catching, our diesel forklift adopts the fuel tank cap for cars.

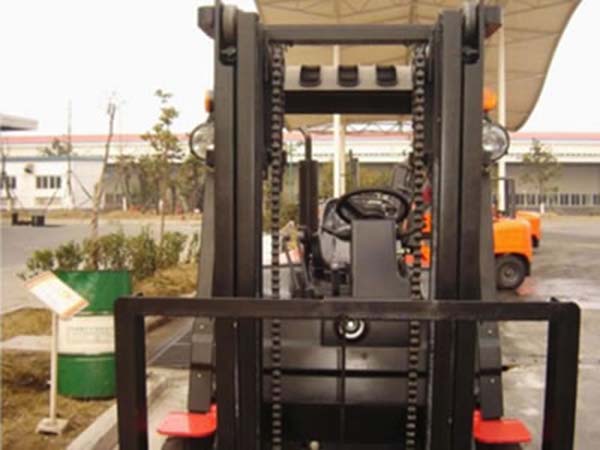

7. Wide field of view for high safety and high working efficiency.
