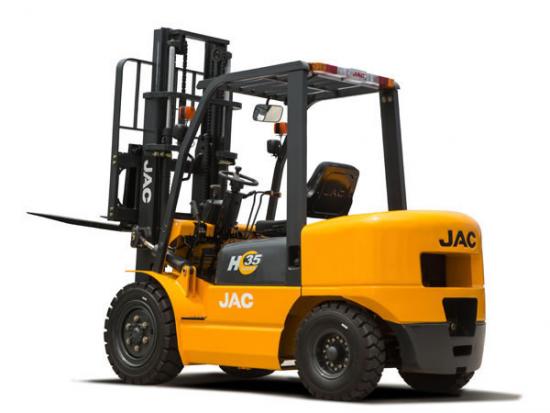

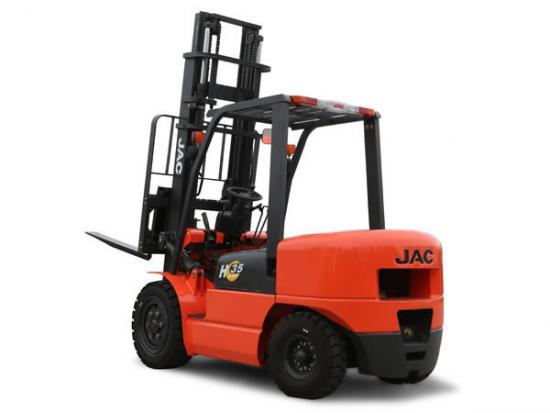

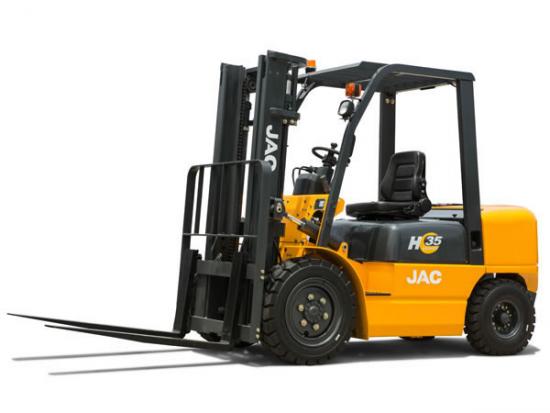

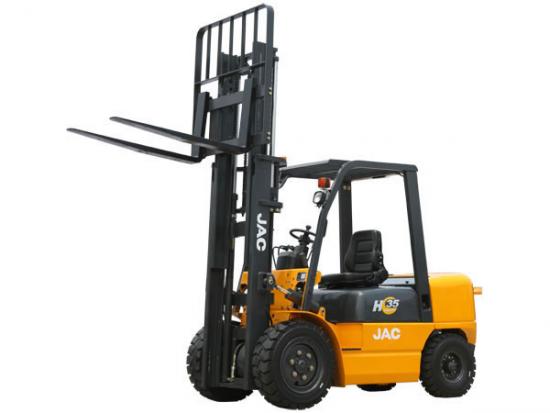

Counterbalanced forklift with Diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
what are you looking for?
Brand:
JACItem NO.:
CPCD30H, CPCD35HPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD30H
CPCD35H
Features
Power type
Diesel
Rated load（kg）
3000
3500
Load center distance（mm）
500
Lift height（mm）
3000
Free lift height（mm）
155
Fork size
L×W×T（mm）
1070×125×45
1070×125×50
Mast tilt angle
Front/Rear
8°/10°
Minimum turning radius（mm）
2550
2570
Minimum right angle stacking aisle width（mm）
4025
3570
Minimum right angle aisle width（mm）
2750
2770
Minimum ground clearance
Frame center(no load)（mm）
140
Mast Bottom（no load）（mm）
130
Height of overhead guard（mm）
2090
Overhang (FR)（mm）
475
485
Performance
Maximum travel speed
Full load（km/h）
19
19
No load（km/h）
19
20
Maximum lift speed
Full load（mm/s）
560
430
No load（mm/s）
570
450
Maximum drawbar pull
Full load（KN）
20
28
Maximum gradeability（%）
15
Dimensions
Overall length
Without forks（mm）
2765
2810
Overall width（mm）
1230
Mast height at maximum lift (with backrest)（mm）
4260
4260
Mast lowered height（mm）
2075
2075
Chassis
Tires
Front wheel
28×9-15-14PR
Rear wheel
6.50-10-10PR
Wheelbase（mm）
1760
Tread
Front wheel/rear wheel（mm）
1000/970
Self weight
Without load（Kg）
4140
4600
Drive
Battery
Voltage/capacity（V/Ah）
12/80
Engine
Model
4D27G31
Xinchang
Rated output（kw/r.p.m）
36.8/2500
Rated torque（Nm/r.p.m）
156/1700-1900
Bore x stroke（mm）
90×105
Number of cylinders
4
Displacement（L）
2.67
Fuel tank capacity（L）
55
Transmissions (FWD/RWD)
1/1 manual shift
Operating pressure（Mpa）
18.5
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
2/2
Lowering speed (full load)（mm/s）
460
330
Lowering speed (no load)（mm/s）
430
330
Axle load distribution (full load) (FR/RR)（kg）
6426/714
7260/840
Axle load distribution (no load) (FR/RR)（kg）
1656/2484
1720/2880
Selling Point

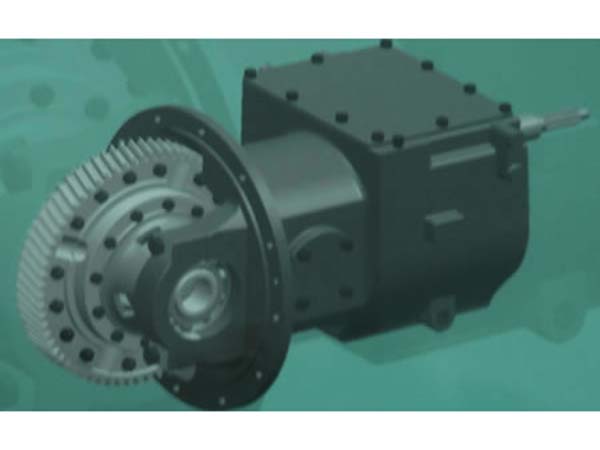

1. The H series diesel forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.

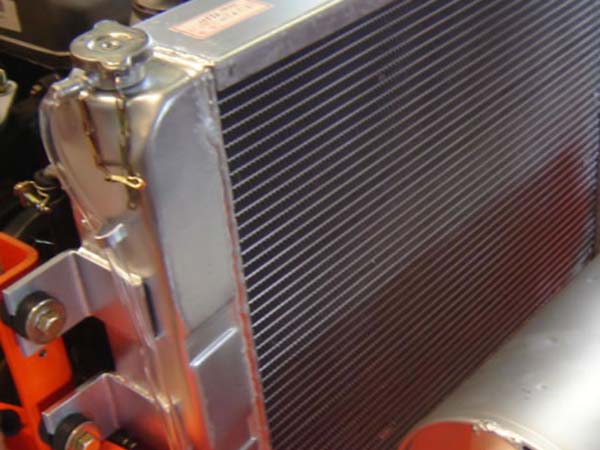

2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.
3. The air intake system of the diesel forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.

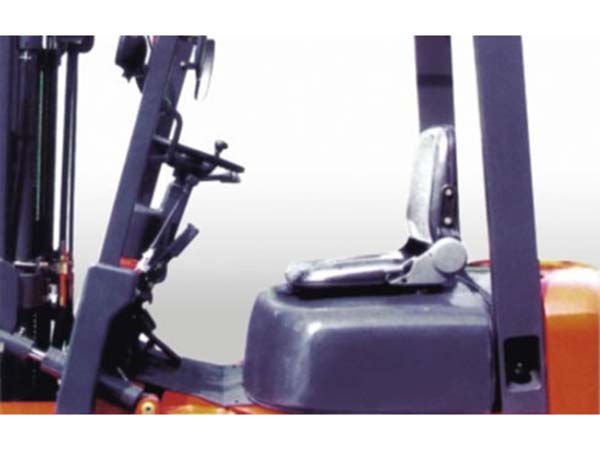

4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.

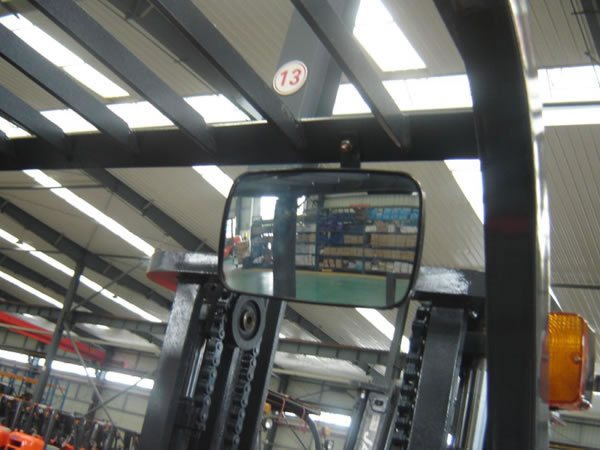

5. Wide field of view

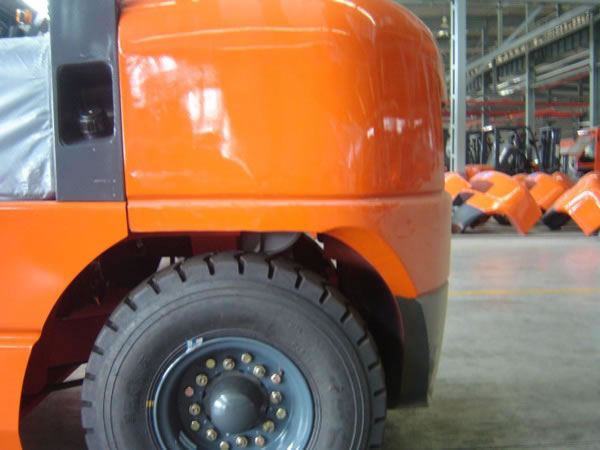

6. Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of our product.

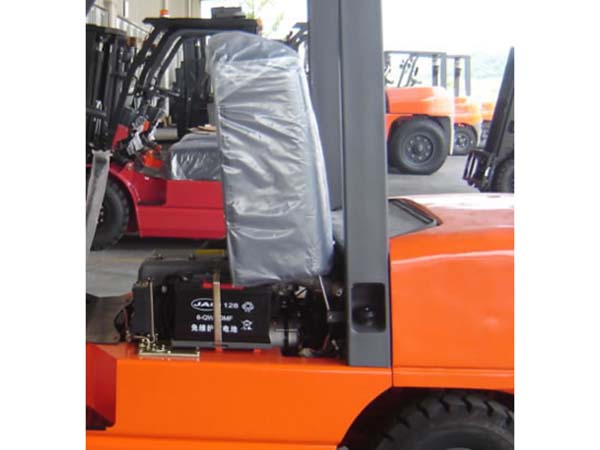

7. Big opening angle of the hood makes the maintenance of the fork truck easier.
