Scissor Fork Reach Stacker with advanced AC control system Loading capacity: 1.5 ton Capacity: 500,000 units/year
what are you looking for?
The CQD series Counterbalanced Reach lift truck with innovative design and application-oriented functionality, low noise, no pollution and a small turning radius. Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.
Loading capacity: 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CQD15M, CQD15LPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
30 days1. Features
•Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive- in racks.
•Available in either DC or AC power options.
•For daily maintenance of the battery, you DON’T NEED to hang up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.
•Equipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.
•Full hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.
•Integrated driving and turning systems.
•A fully hydraulic steering system ensures flexible turning, and requires less maintenance.
•Optional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.
•Height selection and height positioning system is a high-level configuration, which with manual and automatic control, for automatic positioning with a keypad, enabling the operator to choose the appropriate lift height (optional).
2. Specification
Model
CQD15M
CQD15L
Power
battery
battery
Operate type
seated

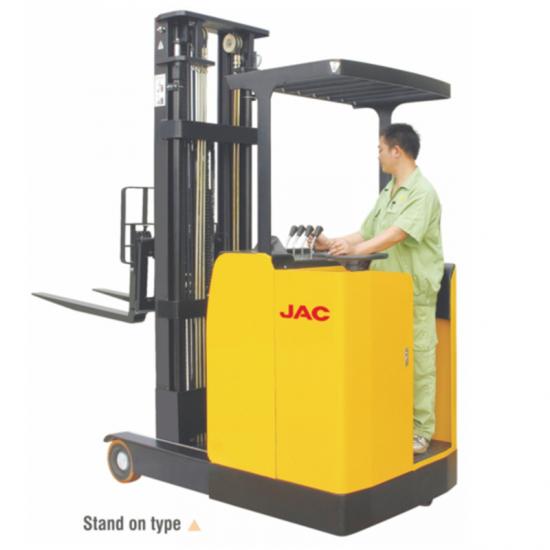

standing
Capacity /rated load
Q(kg)
1500
1500
Lift height
h3(mm)

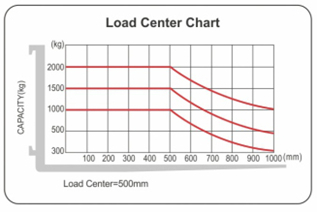

Load centre distance
c(mm)
500
500
Drive wheel
mm
Φ280×100
Φ280×100
Fork wheel
mm
Φ285×80
Φ250×80
Wheels, number front rear(x=driven wheels)
3,2
3,2
Tilt of mast/fork carriage forkward/backward
α,β(Grad)
2,3(mast)
~ ~
3,5(mast)/3,5(forks)/3,5(forks)
Service weight
kg
2400/2800/2900
2340/2740/2840
Free lift
h2(mm)
~/1700/2100
~/1700/2100
Height,mast lowered
h1(mm)
2086/2240/2640
2086/2240/2640
Height,mast extended
h4(mm)
3800/5800/7000
3800/5800/7000
Height of overhead guard(cabin)
h6(mm)
2114
2200
Seat height/stand height
h7(mm)
920
295
Height of crura
h8(mm)
270
270
Overall length
l1(mm)
2390
2360
Length(barring fork)
l2(mm)
1850
1800
Overall width
b1(mm)
1100
1020
Fork dimensions
s/e/l(mm)
35/100/1070
35/100/1070
Reach distance
l4(mm)
600
600

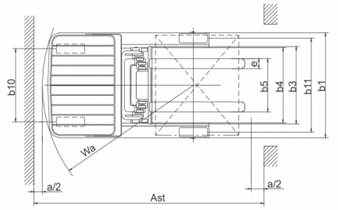

Aisle width for pallets 1000×1200 crossways
Ast(mm)
2800
2800
Aisle width for pallets 800×1200 lengthways
Ast(mm)
2850
2850
Turning radius
Wa(mm)
1740
1700
Travel speed,laden/unladen
Km/h
7/7.2
7/7.2
Lift speed,laden/unladen
m/s
0.19/0.2
0.19/0.2
Lowered speed,laden/unladen
m/s
0.5/0.4
0.5/0.4
Battery voltage,nominal capacity K5
V/Ah
48/400
48/400
Battery weight
kg
550
550
Battery dimensions l/w/h
mm
1092x336x650
983x404x630
