Brand:
JACItem NO.:
CPCD120, CPCD135, CPCD150, CPCD160, CPCD180Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity）Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time：
25 daysSpecifications of Diesel Forklift
Model
CPCD120
CPCD135
CPCD150
CPCD160
CPCD180
Features
Power type
Diesel
Rated load（kg）
12000
13500
16000
16000
18000
Load center distance（mm）
600
600
900
900
900
Lift height（mm）
3000
3000
4000
4000
4000
Free lift height（mm）
85
85
100
100
100
Fork size
L×W×T（mm）
1820×200×85
1820×200×85
2400×250×90
2400×250×90
2400×250×90
Mast tilt angle
Front/Rear
8°/10°
8°/10°
8°/10°
8°/10°
8°/10°
Minimum turning radius（mm）
4750
4750
5250
5250
5250
Minimum right angle stacking aisle width（mm）
8485
8485
9176
9176
9176
Minimum right angle aisle width（mm）
4486
4486
4354
4354
4354
Minimum ground clearance
Frame center(no load)（mm）
320
320
350
350
350
Mast Bottom（no load）（mm）
210
210
265
265
265
Height of overhead guard（mm）
3060
3060
3300
3300
3300
Overhang (FR)（mm）
784
784
1040
1040
1040
Performance
Maximum travel speed
Full load（km/h）
20
20
18
18
18
No load（km/h）
24
24
20
20
20
Maximum lift speed
Full load（mm/s）
370
370
220
220
220
No load（mm/s）
400
400
300
300
300
Maximum drawbar pull
Full load（KN）
80
80
101
101
101
Maximum gradeability（%）
20
20
20
20
20
Dimensions
Overall length
Without forks（mm）
4800
4800
5885
5885
5885
Overall width（mm）
2600
2600
2620
2620
2620
Mast height at maximum lift (with backrest)（mm）
4725
4725
5845
5845
5845
Mast lowered height（mm）
3230
3230
3850
3850
3850
Chassis
Tires
Front wheel
11.00-20-18PR
11.00-20-18PR
12.00-24-24PR
12.00-24-24PR
12.00-24-24PR
Rear wheel
11.00-20-18PR
11.00-20-18PR
12.00-24-24PR
12.00-24-24PR
12.00-24-24PR
Wheelbase（mm）
3000
3000
3800
3800
3800
Tread
Front wheel/rear wheel（mm）
1950/2050
1950/2050
1968/2248
1968/2248
1968/2248
Self weight
Without load（Kg）
18700
19500
25000
25000
26600
Drive
Battery
Voltage/capacity（V/Ah）
24/150

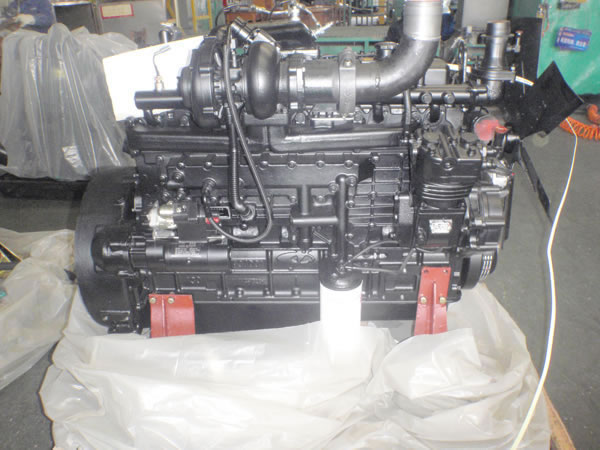

Engine
Model
CA6DF3
CA6DF3
YC6J175-T302
YC6J175-T302
YC6J175-T302
Xichai
Xichai
Yuchai
Yuchai
Yuchai
Rated output（kw/r.p.m）
118/2200
118/2200
129/2200
129/2200
129/2200
Rated torque（Nm/r.p.m）
640/1500
640/1500
710/1600-1800
710/1600-1800
710/1600-1800
Bore x stroke（mm）
110×125
Number of cylinders
6
6
6
6
6
Displacement（L）
7.127
7.127
6.494
6.494
6.494
Fuel tank capacity（L）
130
130
200
200
200
Transmissions (FWD/RWD)
2/2
electronic gearshifting
2/2
electronic gearshifting
3/3
electronic gearshifting
electronic gearshifting
electronic gearshifting
Operating pressure（Mpa）
20
20
20
20
20
Supplement
Tire type (FR/RR)
Pneumatic
Number of wheels (FR/RR)（pcs）
4/2
4/2
4/2
4/2
4/2
Lowering speed (full load)（mm/s）
410
410
410
410
410
Lowering speed (no load)（mm/s）
320
320
320
320
320
Axle load distribution (full load) (FR/RR)（kg）
27650/3050
29500/3500
36000/4000
37200/3800
40000/4600
Axle load distribution (no load) (FR/RR)（kg）
7500/11200
8000/11500
10200/14800
10200/14800
13000/13600
Features of Diesel Forklift

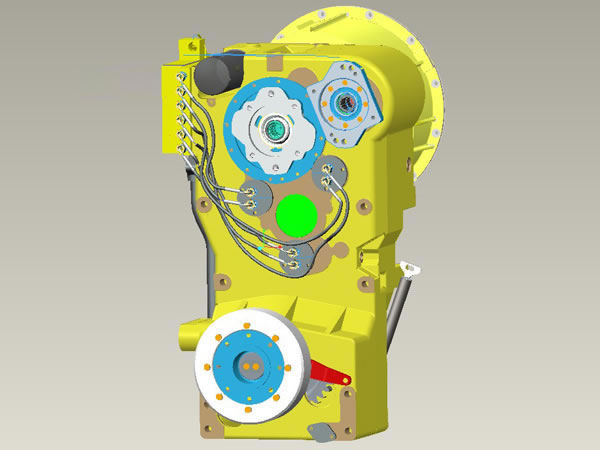

1. Scientifically designed power transmission system

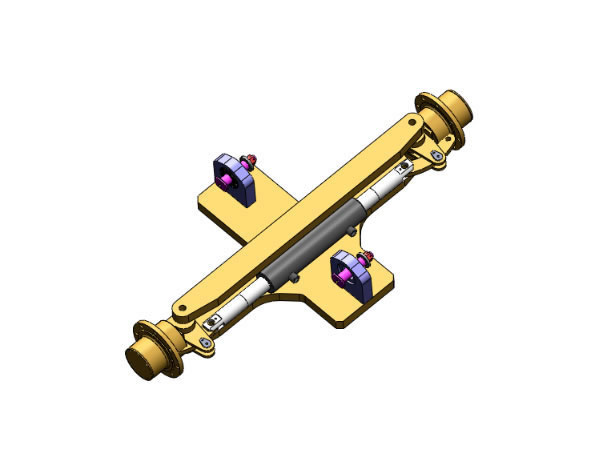

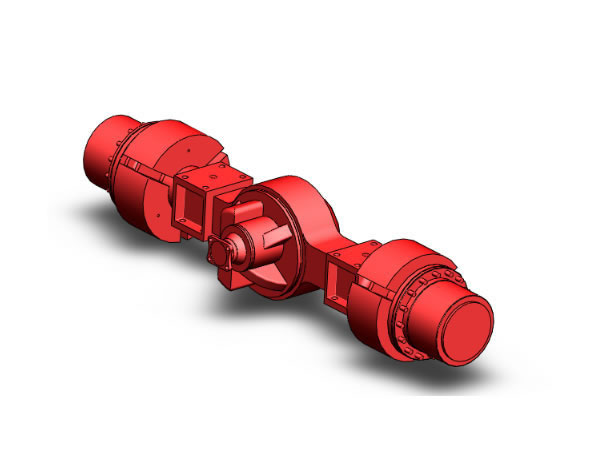

2. Dedicated twin axle for heavy-load lift truck
3. Reliable hydraulic system

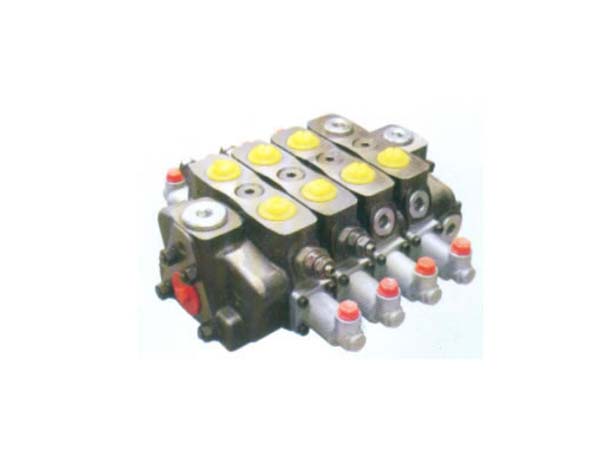

A . The hydraulic system of the diesel forklift adopts imported multi-way valve for high safety and high reliability.

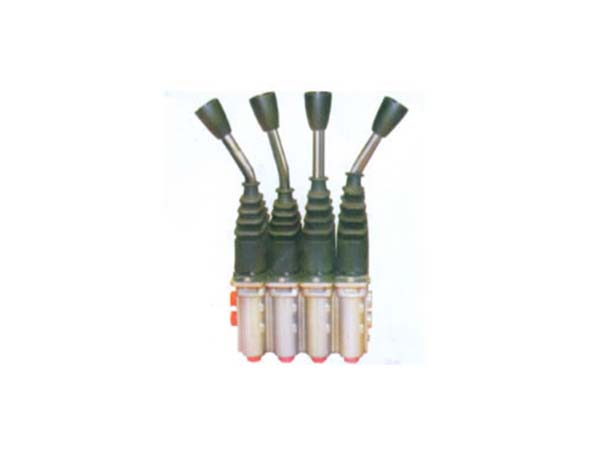

B. Under the control of remote pilot hand lever, the hydraulic system of the material handling equipment helps achieve easy and convenient operation.
C. The main hydraulic parts are purchased from well-known suppliers home and abroad, and have passed performance test.

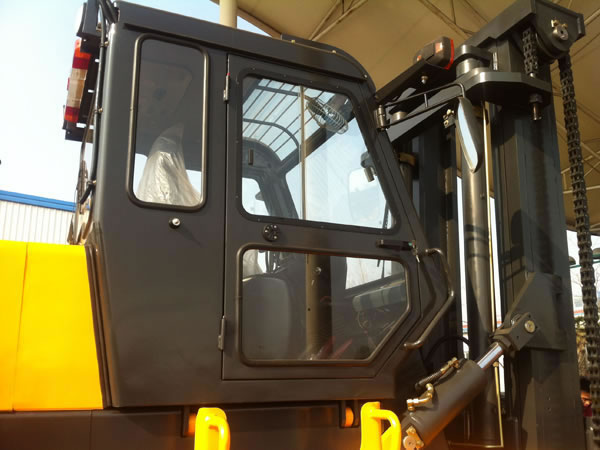

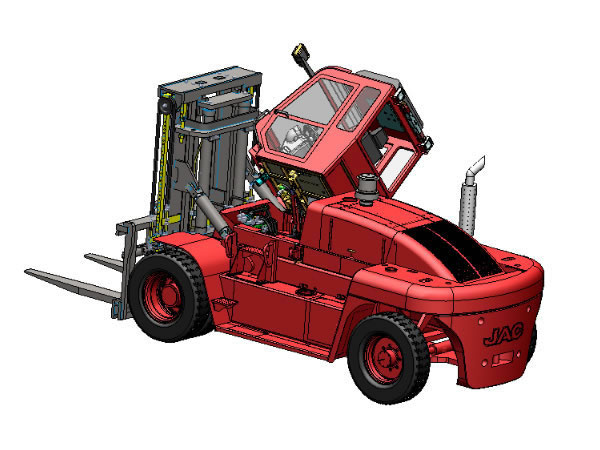

4. The tip-over of the spacious cab can be controlled manually or electrically.
