The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation. Loading capacity: 1 ton, 1.2 ton Capacity: 500,000 units/year
Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation
Loading capacity: 1 ton, 1.2 ton, 1.5 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CDDW10, CDDW12, CDDW15Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
20 days
Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
1. Advantages:
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and fault code etc.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking .
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Standing driving motor system has a small turning radius. The motor structure is water-proof and dust-proof.
• CANbus technology reduces wiring complexity and increase reliability.
• Advanced AC control system with brushless motor .
• Auto deceleration system utilises regenerative braking .
• Side-way battery with roll-out system is very convenient for replacement.
2. Specification
Model
CDDW10-Ⅲ
CDDW12-Ⅲ
CDDW15-Ⅲ
Load capacity
Q(kg)
1000
1200
1500
Load centre distance
c(mm)
500
500
600
Load distance, centre of drive axle to fork
x(mm)
697
697
697
Fork height, lowered
h13(mm)
90
90
90
Tyre size, front
mm
φ250×70
φ250×70
φ250×70
Tyre size, rear
mm
φ80×70
φ80×70
φ80×70
Additional wheels(dimensions)
mm
φ150×60
φ150×60
φ150×60
Wheels, number front rear(x=driven wheels)
1x+1/4
1x+1/4
1x+1/4
Height, mast lowered
h1(mm)
2087/1837/2087/2237
2087/1837/2087/2237
Free lift(option 2500~3500mm)
h2(mm)
~
~
Max. lift height
h3(mm)
1600/2500/3000/3300
1600/2500/3000/3300
Height,mast extended
h4(mm)
2087/3087/3587/3887
2087/3087/3587/3887
Height of tiller in drive position min./max.
h14(mm)
670/1300
670/1300
670/1300
Overall width
b1(mm)
1965
1965
2045
Overall length
l1(mm)
792
792
878
Length to face of forks
l2(mm)
820
820
820
Fork dimensions
s/e/l(mm)
60/170/1070(1150)
60/170/1070(1150)
60/170/1070(1150)
Width overall forks
b5(mm)
570/695
570/695
570/695

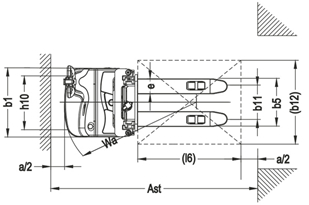

Aisle width for pallets 800×1200 lengthways
Ast(mm)
2370
2370
2450
Turning radius
Wa(mm)
1525
1525
1605
Travel speed, laden/unladen
Km/h
5.3/5.6
5.3/5.6
5.8/6
Lift speed, laden/unladen
m/s
0.06/0.13
0.06/0.13
0.06/0.13
Lowering speed, laden/unladen
m/s
0.13/0.10
0.13/0.10
0.13/0.10
Battery voltage,nominal capacity K5(Duplex Mast)
V/Ah
24/120
24/120
24/200
Battery voltage,nominal capacity K5(Triplex Mast)
V/Ah
~
~
~
Battery weight
kg
90
90
160
Battery dimensions l/w/h
mm
753x178x240
753x178x240
800x254x320
Service weight(with battery)
kg
730/750/770/795
750/770/790/815
760/810/835/860
