ELECTRIC STACKER TRUCK

/Scissor Fork Reach Stacker 1.2 ton and 1.5 ton

Scissor Fork Reach Stacker 1.2 ton and 1.5 ton

Scissor Fork Reach Stacker applies in very narrow Aisle warehouse
Loading capacity: 1.2 ton, 1.5 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CQDH12A-I, CQDH15A-I
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    25 days
  • Product Details

1. Advantages

•Compact structure are specially suit to use in very narrow Aisle warehouse.
•Low gravity, ensure safety operation.
•With disassemble type platform and protection arm.
•Use hydraulic type multi-valve to control l lifting/lowering , fork reach , fork tilting.
•Use Handle to control the truck forward and backward.
•The mast and frame are dividable and exchangeable.
•With small turning radius , with good operation performance.
•Multi function display with BDI and hour meter.
•Single Scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A)


2. Specificaion

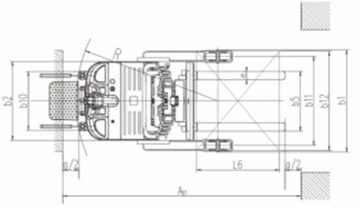

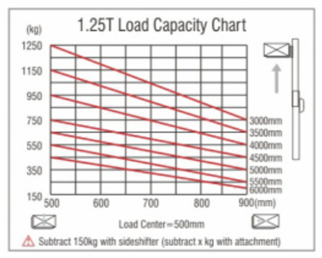

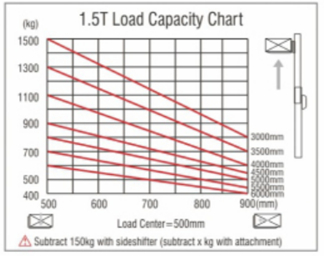

Model CQDH12A-I(single scissor) CQDH15A-I(single scissor)
Load capacity/rated load Q(kg) 1250 1500
Load centre distance C(mm) 500 500
Load distance, centre of drive axle to fork X(mm) 365(double mast)/353(triple mast) 287(double mast)/315(triple mast)
Tyre size, front mm Φ250×80+150×62 Φ250×82+150×62
Tyre size, rear mm Φ150×82×2 Φ125×82×4
Wheels, number front rear(x=driven wheels) 1x+2/2 1x+2/4
Forks, tilt forward/back 2/5 2/5
Height, mast lowered h1(mm) 1853/2103/2353/2603/2163/2323/2483 1869/2119/2369/2619/2179/2341/2499
Free lift h2(mm) ~/~/~/~/1575/1700/1825 ~/~/~/~/1575/1700/1825
Max. lift height h3(mm) 2500/3000/3500/4000/4500/5000/5500
Height,mast extended h4(mm) 3381/3881/4381/4881/5381/5881/6381 3381/3881/4381/4881/5381/5881/6381
Overall length l1(mm) 2327/2327/2327/2327/2340/2340/2340 2364/2364/2364/2364/2384/2384/2384
Length to face of forks l2(mm) 1257/1270 1289(double mast)/1314(triple mast)
Overall width b1/b2(mm) 1166-1266/950 1200-1300/950
Fork dimensions s/e/l(mm) 35/100/1070 35/100/1070
Reach distance l4(mm) 500 500
Aisle width for pallets 1000×1200 crosswise Ast(mm) 2731¹/2740² 2742¹/2767²
Aisle width for pallets 800×1200 lengthways Ast(mm) 2783¹/2794² 2806¹/2830²
Turning radius Wa(mm) 1658 1613¹/1647²
Travel speed,laden/unladen Km/h 4.5/5    /   4.8/5 4.8/5
Lift speed,laden/unladen m/s 0.12/0.15 0.095/0.12
Lowering speed,laden/unladen m/s 0.27/0.2 0.2/0.15
Battery voltage,nominal capacity K5 V/Ah 24/320 24/320(460)
Battery weight kg 285 285(360)
Battery dimensions mm 812x270x535 812x270x535
Service weight(with battery) kg 1800/1850/1900/1900/1950/2000/2050 2250/2300/2350/2350/2500/2550/2600
