/Super Light Electric Walkie Stacker 1 ton and 1.2 ton

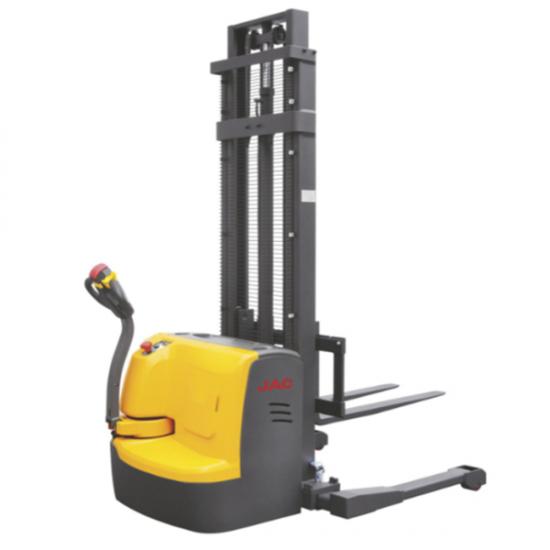

Super Light Electric Walkie Stacker 1 ton and 1.2 ton

The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation.

Loading capacity: 1 ton, 1.2 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CDD10W-E, CDD12W-E
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    20 days
  • Product Details

1. Advantage

•Back cover is integrated type design , easy to assemble and maintain.
•Use GEL battery free to maintain.
•Built in charger easy to access to power supply.
•Low gravity design , 4 point design , improve the trucks stability.
•This drive unit have small turning , the motor and brake is very easy to replace.
•Compact design and small dimensions , offer excellent visibility.

•The turning radius and aisle width is very small and which is similar with manual stacker.


2. Specification

Model CDD10W-E CDD12W-E
Load capacity Q(kg) 1000 1200
Load centre distance c(mm) 600 600
Load distance,centre of drive axle to fork x(mm) 741 741
Height,lowered h13(mm) 90 90
Tyre size,front φ195×70 φ195×70
Tyre size rear φ80×70 φ80×70
Additional wheels(dimensions) φ150×60 φ150×60
Wheels,number front rear(x=driven wheels) 1x+1/4 1x+1/4

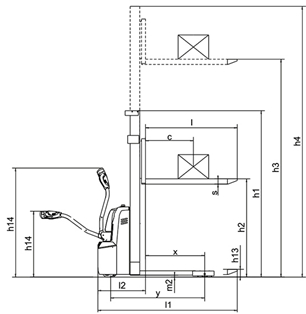

Height,mast lowered h1(mm) 2090/1840/2090/2200/2340 2090/1840/2090
Max. lift height h3(mm) 1600/2500/3000/3300/3500 1600/2500/3000
Height,mast extended h4(mm) 2090/3060/3560/3860/4060 2090/3060/3560
Height of tiller in drive position min./max. h14(mm) 670/1300 670/1300
Overall length l1(mm) 1748(1668) 1748(1668)
Length to face of forks l2(mm) 598 598
Overall width b1(mm) 800 800
Fork dimensions s/e/l(mm) 60×170×1150(1070) 60×170×1150(1070)
Width  overall forks b5(mm) 570/695 570/695
Ground clearance,centre of wheelbase m2(mm) 26 26

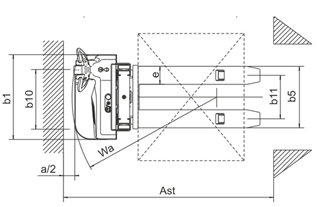

Aisle width for pallets 1000×1200 crossways Ast(mm) 2218 2218
Aisle width for pallets 800×1200 lengthways Ast(mm) 2173 2173
Turning radius Wa(mm) 1365 1365
Travel speed, laden/unladen Km/h 5/6 5/6
Lift speed, laden/unladen m/s 0.12/0.22 0.12/0.22
Lowering speed, laden/unladen m/s 0.14/0.14 0.14/0.14
Battery voltage,nominal capacity K20 V/Ah 24/105 24/105
Battery weight kg 60.8 60.8
Battery dimensions    l/w/h mm 329×172×214 329×172×214
Service weight (with battery) kg 460/525/545/560/565 615/640/660
