The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation. Loading capacity: 1 ton, 1.2 ton Capacity: 500,000 units/year
Electric Rider Stacker Truck with small turning radius
Loading capacity: 2 ton
Capacity: 500,000 units/year
Brand:
JACItem NO.:
CDDR20Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
20 days1. Safety and productivity
AC Motor eliminates replacement of carbon brush.
Multi-function display: battery power, fault code, hour meter and speed level.
Side way battery is easy to maintain.
Damping cushion for low-noise operation.
Emergency reversing device in the handle provides higher safety for the whole operation.
Auto deceleration function makes operation more safely.
Built-in pressure relief valve protects the trucks from overloads, increase the reliability.
Breaking applied with handle upright and horizontal position, increasing the safety of the truck.
Emergency power disconnect switch.
Turtle-shaped low speed switch.
Stepless speed control.
Supporting legs in both sides improve the lateral stability of the stacker
2.Optimum structural design
Low center of gravity ensures the stable operation.
Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius. The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
The mast and the frame are dividable and exchangeable.
Full free lifting, fit for working in low house.(The lifting height is 3 meters, can enter into a 2-meter height door)
3. Serviceability
Low voltage protection setting prolong the battery use time.
The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain.
CANbus technology reduces wiring complexity and increase reliability.
Hall element reduces wear components, resulting in increased component life.
4. Specification
Model
CDDR20
CDDR20(6.5m)

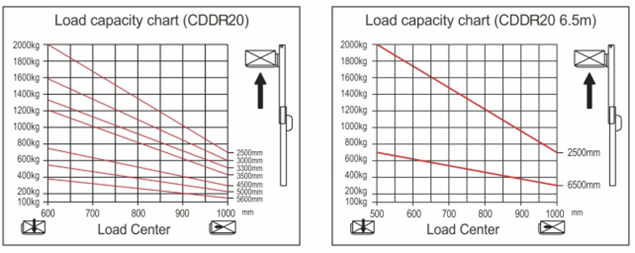

Load capacity
Q(kg)
2000
2000
Load center
c(mm)
600
500
Load distance
x(mm)
672
672
Tyre size, front
mm
Φ250×70
Φ250×70
Tyre size, rear
mm
Φ80×84
Φ80×84
Additional Wheels(dimensions)
mm
Φ150×60
Φ150×60
Wheels, number front rear(x=driven wheels)
1x+2/4
1x+2/4
Height, mast lowered
H1
1735/1985/2135/2235/2050/2210/2410
2710
Free lift (option)
H2
~/~/~/~/1570/1740/1940
2240
Max. lift height
h3(mm)
2500/3000/3300/3500/4500/5000/5600
6500
Height, mast extended
h4(mm)
2955/3455/3755/3955/5030/5510/6110
7050
Height of tiller in drive position min./max
h14(mm)
1150/1450
1150/1450
Fork height, lowered
h13(mm)
90
90
Overall length
l1(mm)
2020/2100
2100/2180
Length to face forks
l2(mm)
950
950
Overall width
b1(mm)
850
950
Fork dimensions
s/e/l(mm)
60/180/1070(1150)
60/180/1070(1150)
Width overall forks
b5(mm)
570/695
570/695

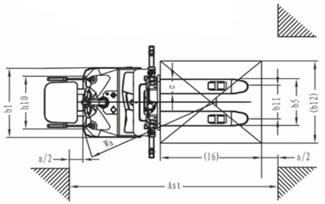

Aisle width for pallets 800×1200 crossways
Ast(mm)
2515
2595
Turning radius
Wa(mm)
1655
1735
Travel speed, laden/unladen
Km/h
5.8/6
5.8/6
Lift speed, laden/unladen
m/s
0.09/0.11
0.09/0.11
Lowering speed, laden/unladen
m/s
0.12/0.11
0.12/0.11
Battery voltage, nominal capacity K5
V/Ah
24/300
24/300
Battery weight
kg
300
300
Battery dimensions l/w/h
mm
675x254x500
675x254x500
Service weight(with battery)
kg
1280/1320/1350/1640/1680/1720/2020
1850
