Walkie Pallet Truck 1.5 ton and 2 ton

Walkie electric pallet truck with small turning radius
Loading capacity: 1.5 ton, 2 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

    CBD15W, CBD18W, CBD20W
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    20 days
  • Product Details

1. Advantages:

•With smallest turning radius 1320mm-1389mm (width 520mm/550mm/685mm).
•Brushless motor with high electric efficiency , maintenance free.
•Full sealed battery free to maintain, big capacity 80AH fit for high intensity use .
•Max speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for frei handle)
•High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
•Floating balance wheel is automatic adjust height, prevents shaking when unload.
•Horizontal drive wheel provides convenient replacement.

2. Standard Features:
•JAC new type Tiller Head with Max. speed limit button.
•Emergency stop & belly button.
•BDI and hour meter.
•Casters to balance stability.
•Sealed battery.
•Brush-less Horizontal motor.
•Built-in Charger.
•Exist roller.


3. Options:

•Germany FREI Tiller Head.
•Out side charger.
•Fork width and length (size).
•Load backrest.





4. Specification

Model CBD15W CBD18W CBD20W
Load capacity Q(kg) 1500 1800 2000
Fork height, lowered h13(mm) 85/75 85/75 85/75
Tyre size, front mm Φ195×70 Φ195×70 Φ195×70
Tyre size, rear(single) mm Φ80×93/Φ74×93 Φ80×93/Φ74×93 Φ80×93/Φ74×93
Tyre size, rear(double) mm Φ80×70/Φ74×70 Φ80×70/Φ74×70 Φ80×70/Φ74×70
Wheels, number front rear(x = driven wheels) 1x-2/4 1x-2/4 1x-2/4
Max. lift height h3(mm) 190/180 190/180 190/180
Height of tiller in drive position min./ max. h14(mm) 950/1310 950/1310 950/1310
Overall length l1(mm) 1525/1595 1525/1595 1525/1595
Length to face of forks l2(mm) 375 375 375

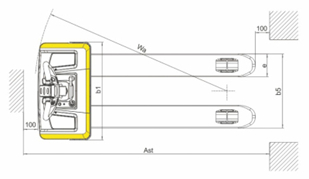

Overall width b1(mm) 685 685 685
Fork dimensions s/e/l(mm) 53/160/1150(1220) 53/160/1150(1220) 53/160/1150(1220)
Width overall forks b5(mm) 520/550/685 520/550/685 520/550/685
Aisle width for pallets 1000×1200 (1200 crossways) Ast(mm) 1725/1795 1725/1795 1725/1795
Aisle width for pallets 800×1200 (1200 lengthways) Ast(mm) 1775/1795 1775/1795 1775/1795
Turning radius Wa(mm) 1347/1415 1347/1415 1335/1405
Travel speed, laden/ unladen km/h 5.3/5.8 4.5/5 4/4.5
Battery voltage/nominal capacity V/Ah 24/80 24/80 24/80
Battery dimensions l/w/h mm 260/169/215 260/169/215 260/169/215
Battery weight kg 49 49 49
Service weight (with battery) kg 230 250 250


leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
pallet truck for sale
Rider Pallet Truck 2 ton to 3 ton

Stand-on type platform electric rider Pallet Truck, with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport. Loading capacity: 2 ton, 2.5 ton, 3 ton Capacity: 500,000 units/year

pallet truck for sale
Walkie Pallet Truck with Lithium battery 1.2 ton and 1.5 ton

Lightweight walkie electric pallet truck, powerby by maintenance-free lithium battery, long working time around 6hours Loading capacity: 1.2 ton, 1.5 ton Capacity: 500,000 units/year

5t Hand Pallet Truck
Heavy Handle Pallet Truck 5 ton

Heavy Handle Pallet Truck with high reliability and long service lift of 5 years Loading capacity: 5 ton Capacity: 1000,000 units/year

pallet truck for sale
Rider Pallet Truck 2 ton to 3 ton

Stand-on type platform electric rider Pallet Truck, with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport. Loading capacity: 2 ton, 2.5 ton, 3 ton Capacity: 500,000 units/year

diesel engine forklift

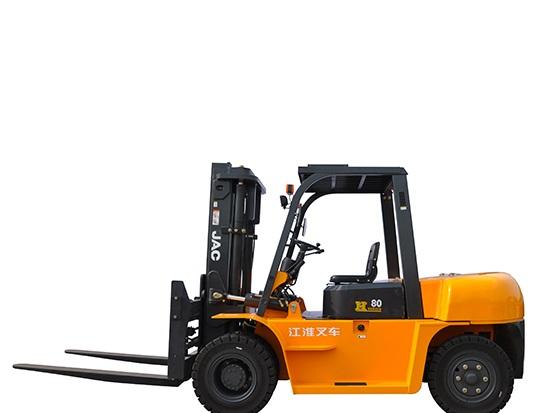

Diesel Forklift Truck 6 ton to 10 ton
