Handle Pallet Truck with scale combined two major functions for pallet truck/scale, allows you to weigh cargo Loading capacity: 2 ton Capacity: 1000,000 units/year
Brand:
JACItem NO.:
DBPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Min order:
6Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
15 days
Light Handle Pallet Truck 1.5 ton and 2 ton
1. Features:
• Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
• Exceptionally strong but light weight steel construction, service weight is only 55kgs.
• With welded joints and reinforced fork tips for most durability in the toughest applications.
• 3 position hand control- Raise,Lower,Neutral.
• Excellent turning angle of 190 degrees facilities.
• Number of pump strokes 12 times, lift height per stroke 11mm.
• Reliable oil leak-proof hydraulic system.
2. Option:
1.Nylon wheel, polyurethane wheel, rubber wheel,single fork roller or tandem fork rollers.
3.Fork length:800mm,900mm,1000mm,1100mm.

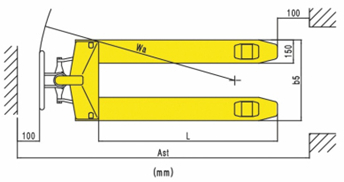

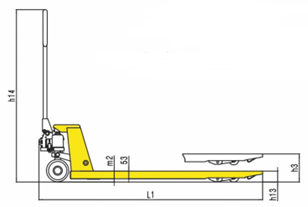

3. Specification:
Model | DB | DB-II | |
Capacity | Q(kg) | 2000 | 1500 |
Lowered fork height | h13(mm) | 75 | 75 |
Steering wheel | mm | φ160 | φ160 |
Fork wheel single | mm | φ70×80 | φ70×80 |
Fork wheel tandem | mm | φ70×60 | φ70×60 |
Max. lift height | h3(mm) | 190 | 190 |
Total height | h14(mm) | 1176.5 | 1176.5 |
Overall length | l1(mm) | 1520/1590 | 1520/1590 |
Fork length | l(mm) | 1150/1220 | 1150/1220 |
Width overall forks | b5(mm) | 520/550/680 | 520/550/680 |
Ground clearance,centre of wheelbase | m2(mm) | 22 | 22 |
Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1720/1790 | 1720/1790 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1770/1790 | 1770/1790 |
Turning radius | Wa(mm) | 1265/1335 | 1265/1335 |
Service weight | kg | 53-60 | 53-60 |
