Handle Pallet Truck with scale combined two major functions for pallet truck/scale, allows you to weigh cargo Loading capacity: 2 ton Capacity: 1000,000 units/year
Brand:
JACItem NO.:
BF-IIIPayment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Min order:
6Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
15 days
Premium Handle Pallet Truck 2.5 ton
1. Features:
•Integrated pump without welding , no any leaking problems.
•Frame force is more reasonable , and the strength is more reliable.
•Handle seat has hole it is more convenient for installation of control chain.
•Forks lowering speed is controllable, with overload valve to avoid overloading.
2. Option:
1) steering wheel 200mm (fork wheel 80mm) are available.

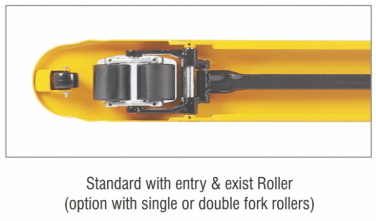

2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
3) Fork length:800mm,900mm,1000mm,1100mm.
4) Foot pedal release.
5)Pump color: black paiting.
6)Quick lift (double speed lifting)
3. Specification:
Model | BF-III | ||
Capacity | Q(kg) | 2500 | 2500 |
Lowered fork height | H13(mm) | 85 | 75 |
steering wheel | mm | φ180 | φ180 |
fork wheel single | mm | φ74×93 | φ74×93 |
fork wheel double | mm | φ74×70 | φ74×70 |
Max. Lifting height | h3(mm) | 195 | 185 |
Height of tiller in drive position min./max. | h14(mm) | 1214 | 1214 |
Overall length | l1(mm) | 1543/1613 | 1543/1613 |
Fork length | l(mm) | 1150/1220 | 1150/1220 |
Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
Ground clearance, center of wheelbase | m2(mm) | 32 | 22 |
Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1743/1813 | 1743/1813 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1793/1813 | 1793/1813 |
Turning radius | Wa(mm) | 1276/1346 | 1276/1346 |
Service weight | kg | 56-70 | 56-70 |
