ELECTRIC TOW TRACTOR
Home /

ELECTRIC TOW TRACTOR

/Electric Tow Tractor 2 ton to 6 ton

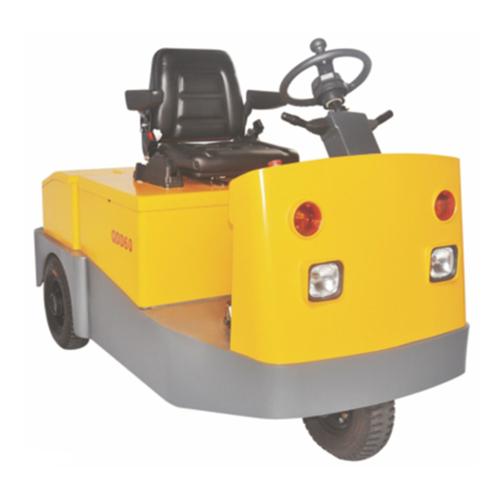

Electric Tow Tractor 2 ton to 6 ton

Electric Tow Tractor for warehouse goods delivery
Loading capacity: 2 ton, 3 ton, 5 ton, 6 ton
Capacity: 500,000 units/year

  • Brand:

    JAC
  • Item NO.:

    QDD20E, QDD30E, QDD50E, QDD60E
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Color:

    Red, Orange, Yellow (can be customized in large quantity)
  • Shipping Port:

    Hefei, Nanjing, Shanghai, Ningbo and so on
  • Lead Time:

    20 days
  • Product Details

1. Advantage:

●New advanced car outline, completely opened cover, distinguished and beautiful.
●Full AC electric system has brake-releasing function, more easy and comfortable to operate; Maintenance-free motor completely solves the problem of DC motor carbon brush.
●New large-screen display instrument provides all kinds of information more clearly and directly for the operator.
●New opened high-range steering design, light to steering and easy to maintain.

●The parking brake adopts electromagnetic brake. It locks the truck automatically
 after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.

●Side-way battery (optional)

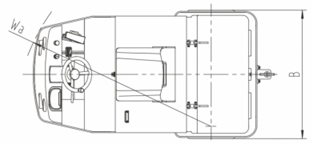

2. Specification

Model QDD20E(AC) QDD30E(AC) QDD50(AC) QDD60(AC)
Drive type Battery Battery Battery Battery
Rated traction weight     (60 minutes rated) kg 2000 3000 5000 6000
Draw bar center height h1/h2(mm) 280/350 280/350 280/350 280/350
Weight kg 740 780 1240 1280
Axle loading, front kg 300 310 410 450
Axle loading, rear kg 440 470 830 830
Tyre number front/rear X=Driven wheels 1/2X 1/2X 1/2X 1/2X
Tyre size, front solid rubber 15*41/2-8 15*41/2-8 15*41/2-8 15*41/2-8
Tyre size, rear solid rubber 15*41/2-8 15*41/2-8 4.00-8 4.00-8
Rear hanging distance L2(mm) 382 382 500 450
Seat height h3(mm) 910 910 910 910
Overall length L(mm) 1720 1720 1975 1940
Overall width W(mm) 968 968 1100 1100
Overall height H(mm) 1270 1270 1250 1250
Min. ground height X(mm) 90 90 90 100
Min. turning radius Wa(mm) 1500 1500 1650 1650
Travel speed(laden/unladen) km/h 7/10 6.5 8/14 7/14
Wheel base L1(mm) 1055 1055 1250 1250
Max. gradeability(laden/unladen) 7/12 7/12 6/15 6/15
Battery voltage, nominal capacity K5 V/Ah 36/200 36/250 48/360 48/400
Battery weight kg 200 250 610 610
Traction bolt Traction bolt Traction bolt Traction bolt Traction bolt
