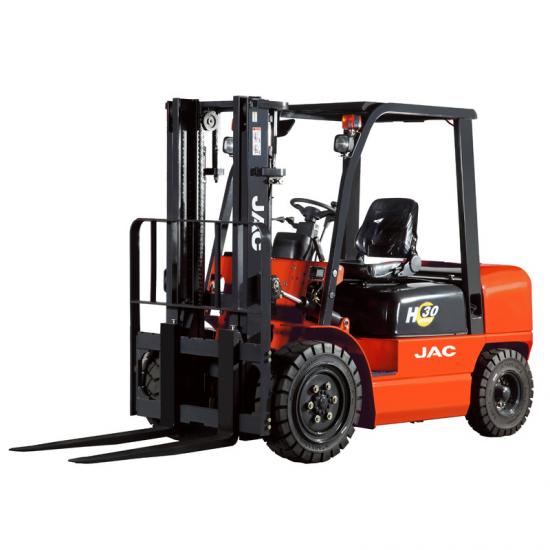

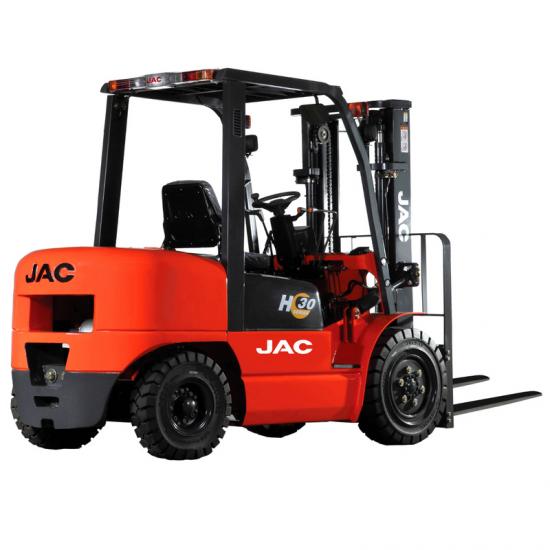

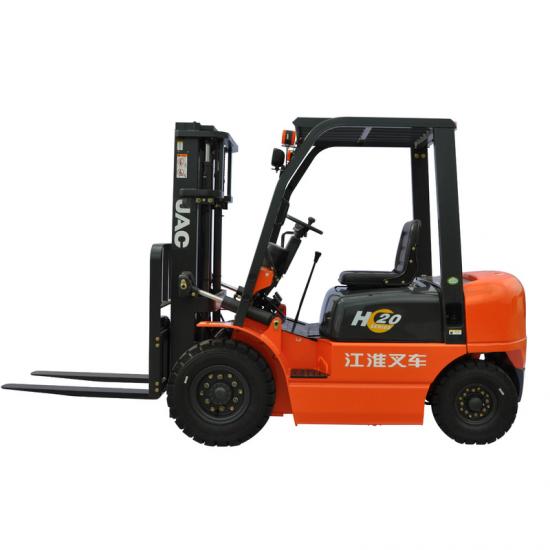

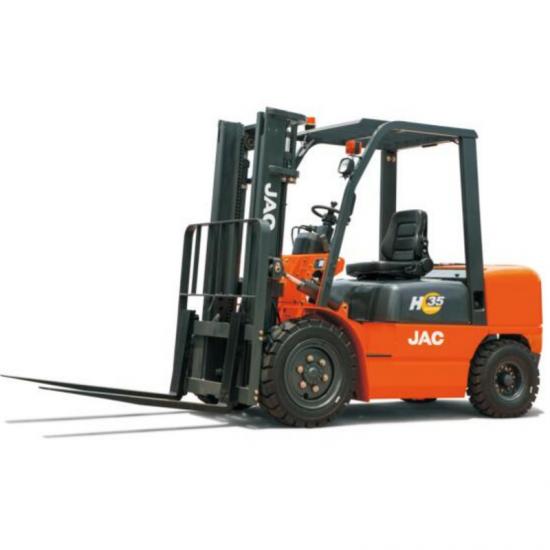

Counterbalanced forklift with gasoline engine, Chinese engine and Nissan engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/year
Loading capacity: 2 ton, 2.5 ton, 3 ton, 3.5 ton
Capacity: 20,000 units/year
Brand:
JACItem NO.:
CPQD20, CPQD25, CPQD30, CPQD35Payment:
T/T, L/CProduct Origin:
ChinaColor:
Red, Orange, Yellow (can be customized in large quantity)Shipping Port:
Hefei, Nanjing, Shanghai, Ningbo and so onLead Time:
25 days1. Advantage
. Japanese Nissan engine for selection;
. Small overall dimension, low centre of gravity, small turning radius, and the excellent manoeuvrability;
. The eco-friendly design of the forklift offers full protection to both the users and environment;
. The frame and the steering axle of the material handing equipment are engineered with shock absorber to reduce . The impact and maximize the comfort during operation.
2. Feature

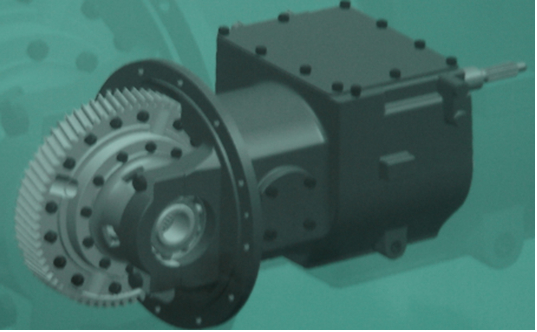

Equipped with a mechanical synchronizer, soft and smooth gear switching, avoid collision between gears to reduce noise, increase gears working life.

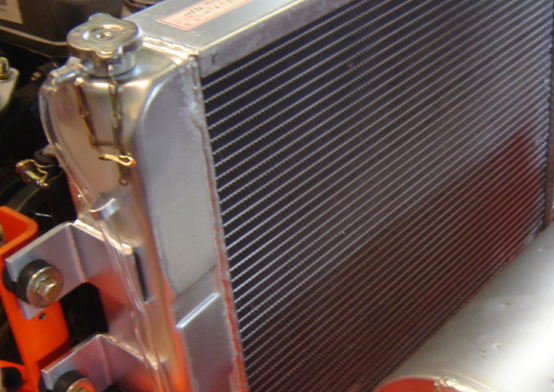

With aluminum radiator which has been widely used on forklift, makes better cooling effect.

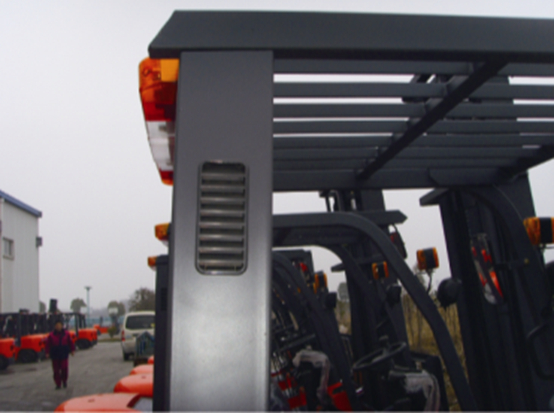

High air intake system, effectively prevent dust being absorbed, therefore extend working life of the engine.

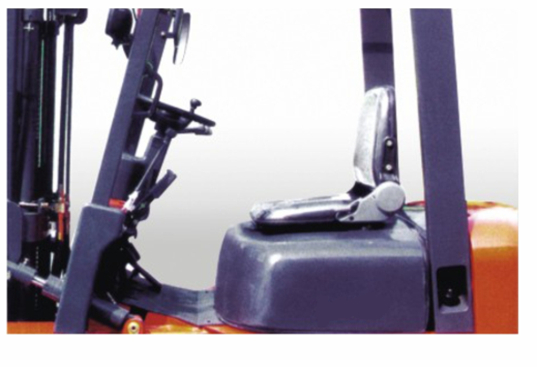

Position of the seat and the angle of the steering wheel are adjustable, improve operating room, makes comfort to drive.

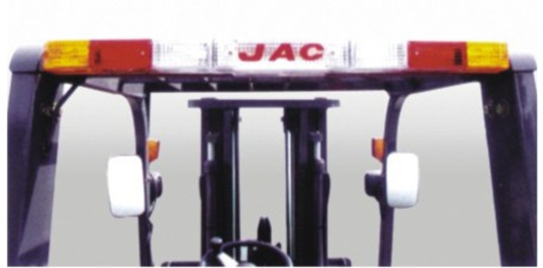

Fashionable appearance, combined tail lamps at the back of overhead guard, noticeable and obvious, provide safer working condition and more suitable for night operations, exterior design obtained national patent.
3. Specification
Model
CPQD20
CPQD25
CPQD30
CPQD35
1
Feature
Power Type
Gasoline
Gasoline
2
Load Capcity
kg
2000
2500
3000
3500
3
Load center
mm
500
500
4
Lift height
mm
3000
3000
5
Free lift height
mm
240
165
6
Forkk size
L*W*H
mm
1070×122×40
1070×125×45
1070×125×50
7
Mast tilt
FR/RR
。
6/12
6/12
8
Min turning Radius
mm
2170
2230
2459
2573
9
Min Right angle stacking aisle width
mm
3655
3230
3933
3573
10
Min right angle aisle width
mm
2370
2430
2659
2773
11
Min ground clearance
mm
110
110
130
12
Height of overhead guard
mm
2070
2090
13
Overhang
mm
485
474
14
Performance
Max driving speed
Full load
km/h
19.5
19
18.5
15
Max Lifting speed
Full load
mm/s
500
490
420
16
Max drawbar pull
Full load
KN
11.7
11.4
20
28
17
Gradeabiity
%
20
18
15
18
Dimension
Overall length
Without forks
mm
2505
2580
2763
2799
19
Over width
mm
1160
1230
20
Height mast lifted(with backrest)
mm
3750
4256
21
Height mast lowered
mm
1995
2065
2065
22
Chassis
Tyre
Front
7.00-12-12PR
28×9-15-14PR
23
Rear
6.00-9-10PR
6.50-10-10PR
24
Wheelbase
mm
1600
1760
25
Tread
FR/RR
mm
970/970
1000/970
26
Self weight
Without load
Kg
3300
3660
4140
4460
27
Drive
Battery
Voltage / Capacity
V/Ah
12/80
12/80
28
Engine
Model
BAOFA BF4Y
BAOFA BF4Y
29
Rated Power
kw/r.p.m
39/2500
39/2500
30
Rated Torque
Nm/r.p.m
160/1800
160/1800
31
Bore * sTROKE
mm
91×86
91×86
32
No.of Cylinder
4
4
33
Displacement
L
2.237
2.237
34
Fuel tank capacity
L
55
35
Transmission
1/1manual shift
1/1manual shift
36
Operating Pressure
Mpa
18.5
37
Supplement
Tire type (FR/RR)
Pneumatic
Pneumatic
38
Numbers of wheels
pcs
2/2
2/2
39
lowering speed (full load)
mm/s
550
480
493
40
Lowering speed ( unload)
mm/s
540
460
463
41
Axle load distribution (full load) (FR/RR)
kg
4740/660
5470/805
6272/868
7015/945
42
Axle load distribution (unload) (FR/RR)
kg
1415/1340
1475/2305
1636/2504
1662/2798
